Lateral Brace CFB CC41 HCP
Group: 1825
Part number 803641

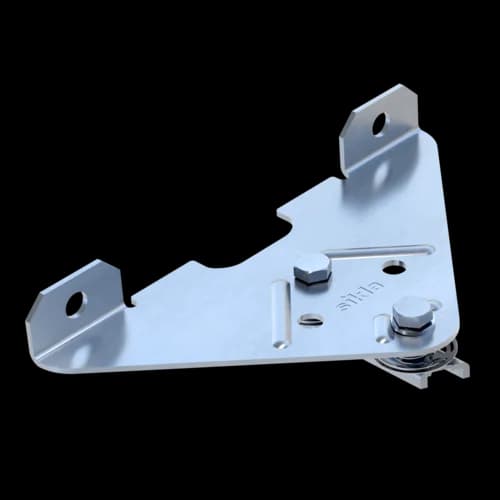

Lateral Brace CFB as shear force stabiliser for Cantilever Brackets 41
Absorption of lateral forces through thermal expansion in warm pipelines
Technical Data
Completely pre-assembled with CC components.
Usability value (a safety value of 2,0 was considered).
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation

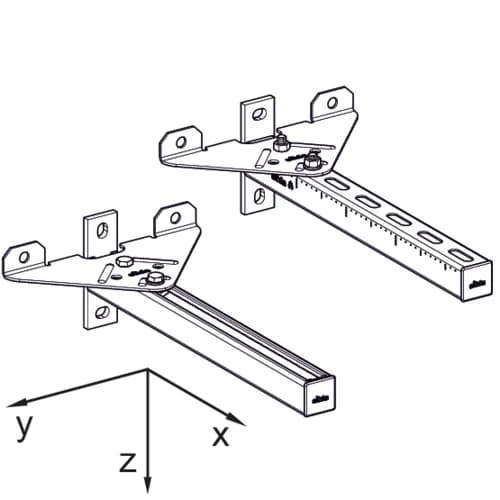

CFB CC41 for mounting on the channel slot:
The CC-Connector is already pre-mounted on the cross support. After inserting inside the channel slot with a light press the CC-Threaded Plate will move to the right and a clicking sound will be heard. The de-installation of the CC-Connector will success be reversing the above instructions. The cross support must be well inserted and the screws must be fully fixed.
As an Option the Cross support can be mounted using 2 anchors to a wall (in order to increase the capability of handling higher shear forces). The Anchors are to be ordered separately.
