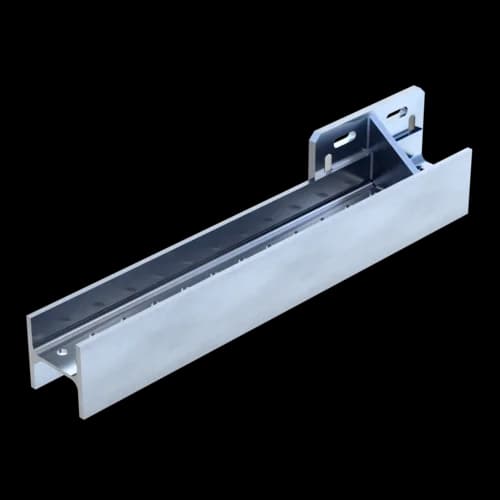

Joining Beam Bracket QKO 120-1000 HCP
Group: A624
Part number 193235
Suitable for vertical assembly on concrete or steel beams.
Ideal especially for risers.

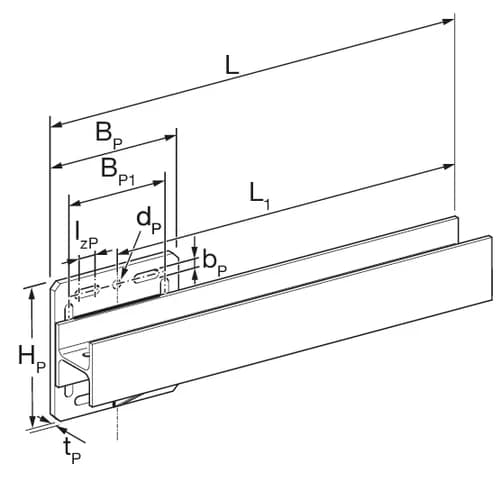

Technical Data
BP | 220 mm |
BP1 | 170 mm |
bP | 14 mm |
dP | 14 mm |
HP | 220 mm |
IZP | 30 mm |
L | 1.100 mm |
L1 | 1.000 mm |
tP | 12 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)

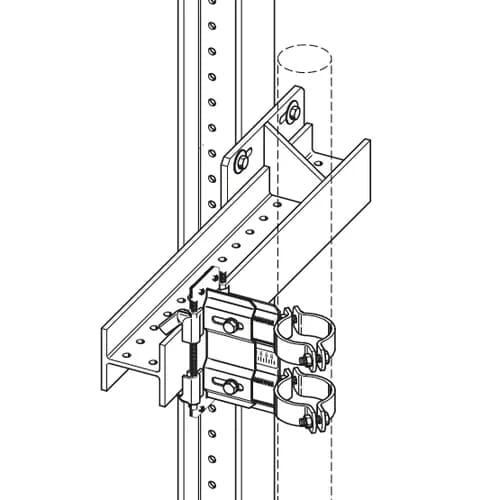

Installation
Depending on the situation, different options are recommended:
a) Fixing on concrete by means of 4 heavy duty anchors M12
b) Frictional connection to steel beams (flange width 80 - 120 mm) by means of Assembly Set 5P M12 S.
c) Interlocking connection to TKO 100 or 120 by means of Bracket Plates FV 100/120
Configuration: Base plate and support flange welded to IPBI 120
