Type 500

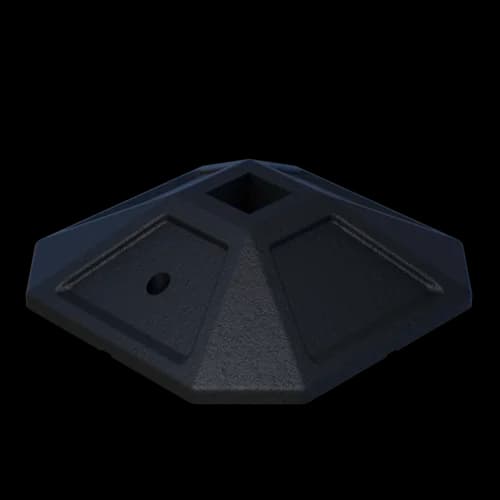

Insulated Foot Plate SHB SQF F 80 - 500

Group: A440

Part number 218868

Complete solution made of synthetic rubber for flat and foil roofs as well as building services in the basement

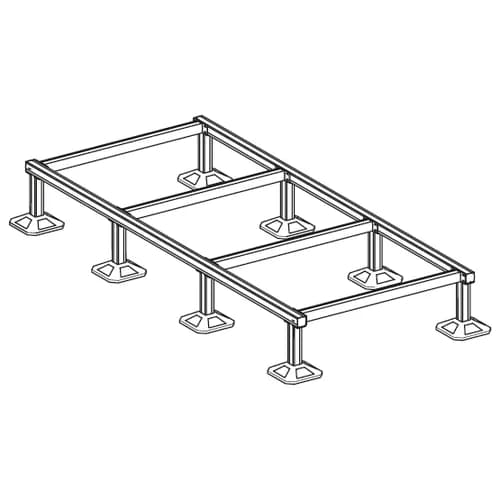

In combination with the siFramo 80 mounting system for quick and flexible installations

Technical Data

B	500 mm
H	130 mm
H₁	90 mm
L	500 mm

Load range

V_Z,perm.

16,00 kN

Technical specifications

Primary element material

SBR

Installation

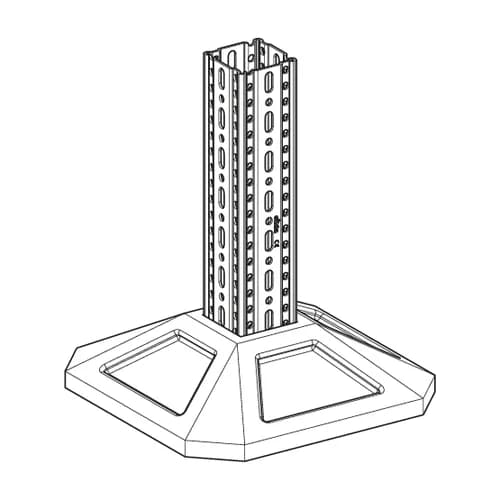

Insert the Beam Section TP F 80 into the Insulated Foot's slot.

Type SQF 350: 60 mm
Type SQF 500: 90 mm

Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. felt) is necessary. Furthermore the statics have to be verified by a qualified engineer.

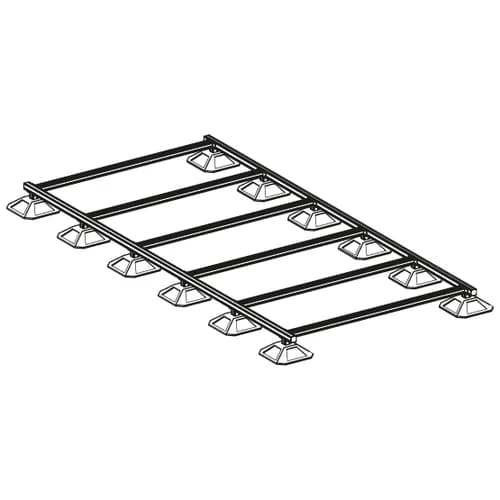

The SQF foot is a primary element when supporting such plant as AHU and Chiller Units and is available 0º or with a 2.5º or 5º pitch.
