Type 350

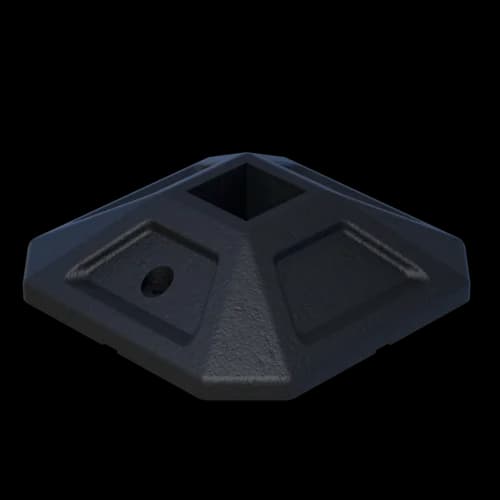

Insulated Foot Plate SHB SQF F 80 - 350
Group: A440
Part number 218865
Complete solution made of synthetic rubber for flat and foil roofs as well as building services in the basement
In combination with the siFramo 80 mounting system for quick and flexible installations
Technical Data
Load range
VZ,perm. | 16,00 kN |
Technical specifications
Material base body | SBR |
Installation
Insert the Beam Section TP F 80 into the Insulated Foot's slot.
Type SQF 350: 60 mmType SQF 500: 90 mm
Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. felt) is necessary. Furthermore the statics have to be verified by a qualified engineer.
The SQF foot is a primary element when supporting such plant as AHU and Chiller Units and is available 0º or with a 2.5º or 5º pitch.
