Group: A767
Part number 801092

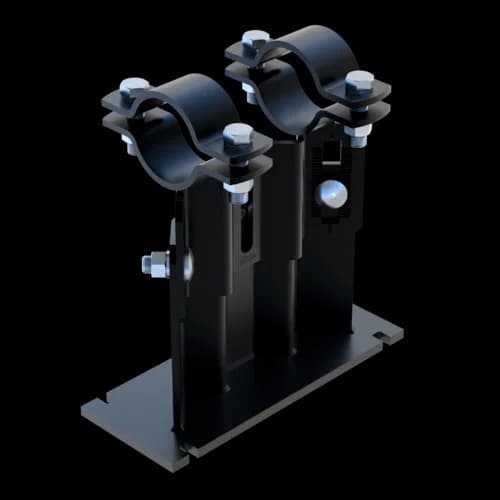

Double-clamp, height-adjustable Pipe Shoe with a delivery height of 200 mm, height-adjustment in steps of 2.5mm - suitable for sliding pipe supports
Designed for use in temperatures up to 500°C, with material-dependent correction factors for load determination in accordance with DIN EN 13480-3.
Suitable for steel beams, with a minimum flange width of 80 mm
Sikla Pipe Supports - Comprehensive Solutions for Secure and Efficient Installations
PDF (5.52 MB)

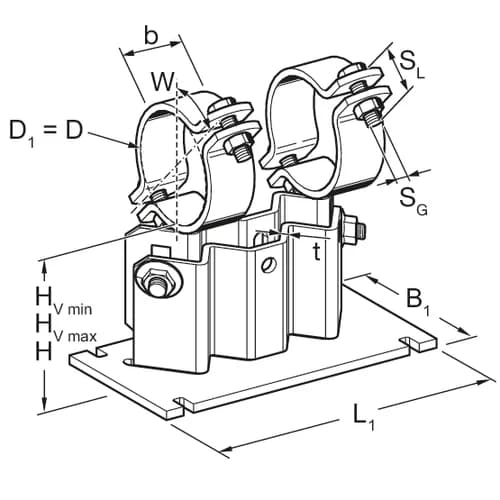

B1 | 100 mm |
b | 30 mm |
D | 49 mm |
D1 | 49 mm |
H | 200 mm |
HV min | 171 mm |
HV max | 223,5 mm |
L1 | 250 mm |
SL | 40 mm |
SG | M10 |
t | 5 mm |
W | 90° |
Max. temperature | 500 °C |
Pipe shoe static coefficient of friction u (without sliding plate) - siFramo and siMotec | 0,3 |
Salt spray test | Resistance > 500 hours |
Primary element material | steel |
| Type | Height H as delivered [mm] | Height H Range [mm] |
|---|---|---|
| HV 200 | 200 | 171 - 223,5 |
Tightening torque screw connections
| Clamping bolts | Tightening torque [Nm] | Height adjustment | Tightening torque [Nm] |
|---|---|---|---|
| DN 15 - 40 | 40 | Bolts in the bar | 80 |
| DN 50 - 200 | 50 | Bolts in the bar | 80 |
Connecting element material |
Torque/Nut Height adjustment: A4-80, Torque/Nut Pipe Clamp: A4-70 |
Surface finish | powder-coated |
Corrosion protection class | C4 (>300°C) |
Certification
