Group: 1870
Connecting element for creating a screw connection in combination with a nut or an existing thread
Available in HCP

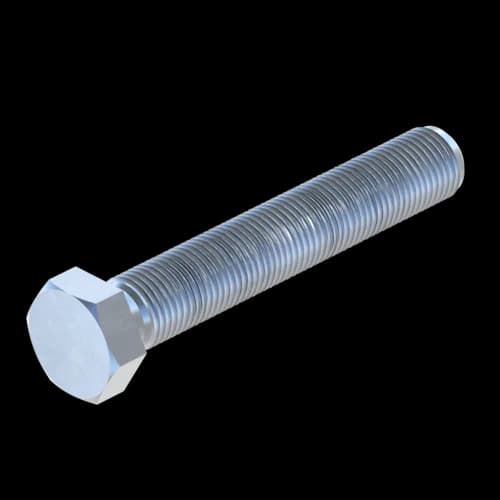

Fastener in HCP for creating a screw connection in combination with a nut or an existing thread.
Certification
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Satisfies DIN 933
Info | Type | L | Weight | Quantity | Part number | |
| SKT M10X 25 DIN933 8.8 HCP | 25,00 mm | 0,024 kg/pcs. | 100 pcs. | 162568 | ||
| SKT M10X 40 DIN933 8.8 HCP | 40,00 mm | 0,032 kg/pcs. | 100 pcs. | 162577 | ||
| SKT M12X 25 DIN933 8.8 HCP | 25,00 mm | 0,035 kg/pcs. | 100 pcs. | 162586 | ||
| SKT M12X 30 DIN933 8.8 HCP | 30,00 mm | 0,04 kg/pcs. | 100 pcs. | 164144 | ||
| SKT M12X 40 DIN933 8.8 HCP | 40,00 mm | 0,046 kg/pcs. | 50 pcs. | 162595 | ||
| SKT M12X 60 DIN933 8.8 HCP | 60,00 mm | 0,062 kg/pcs. | 50 pcs. | 164153 | ||
| SKT M12X 80 DIN933 8.8 HCP | 80,00 mm | 0,075 kg/pcs. | 50 pcs. | 164162 | ||
| SKT M12X100 DIN933 8.8 HCP | 100,00 mm | 0,093 kg/pcs. | 50 pcs. | 164171 | ||
| SKT M16X 50 DIN933 8.8 HCP | 50,00 mm | 0,101 kg/pcs. | 100 pcs. | 162601 | ||
| SKT M16X 80 DIN933 8.8 HCP | 80,00 mm | 0,145 kg/pcs. | 25 pcs. | 164180 | ||
| SKT M16X100 DIN933 8.8 HCP | 100,00 mm | 0,171 kg/pcs. | 25 pcs. | 171866 | ||
