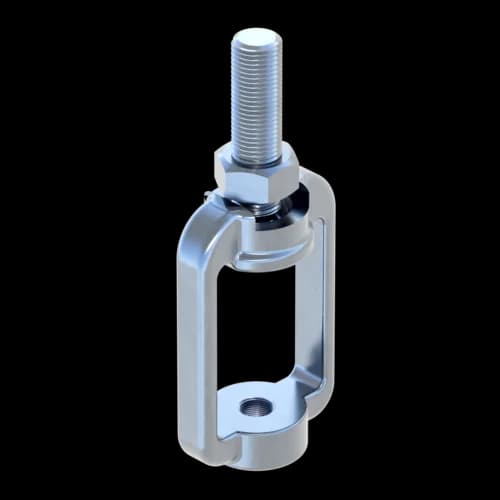

Height Adjuster HRS P M 8
Group: 1339
Part number 151519
Suitable for all M&E services
Can be fixed directly to the ceiling (anchor) or in a suitable channel
Suspension unit in the upper section allows pipes to move in all directions
Technical Data
Pre-assembled component, no loose parts.
Load range
-VZ,perm. | 4,00 kN |
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Installation
The upper part of the base component can be used as a tool for screwing in the suspending bolt. Then the bolt only has to be tightened with an open-ended spanner. After mounting, the base component rests freely mobile and rotatable on the rounded bolt head. Fixing a locking nut against the cup nut secures the height adjusted.
Max. swinging angle: 7°
Connections:
| Type | Connection to system | Connection to building structure |
|---|---|---|
| P M8 | M8 | M8 x 22 |
| P M10 | M10 | M10 x 22 |
