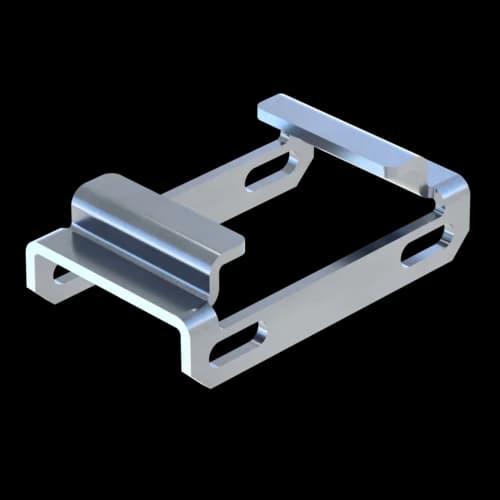

Guiding Bracket FW F 80 HCP
Group: A705
Part number 110349
Element for converting siMotec Sliding Pipe Shoes to Guided Pipe Shoes
Suitable for siFramo F80 beam sections

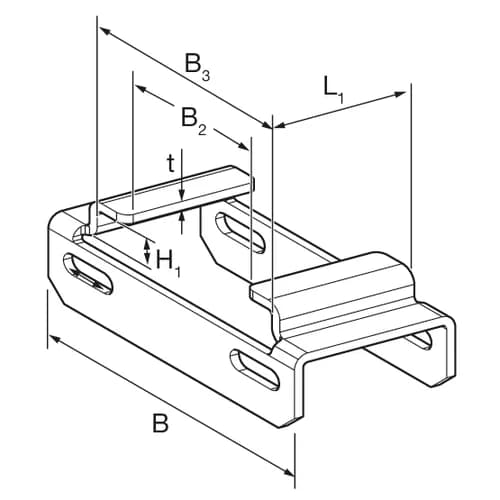

Technical Data
B | 155 mm |
B2 | 77 mm |
B3 | 110 mm |
H1 | 16,5 mm |
L1 | 76 mm |
t | 5 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Connection to Beam Sections TP F 80 and 80/30 by means of 4 Self-Forming Screws FLS F.
