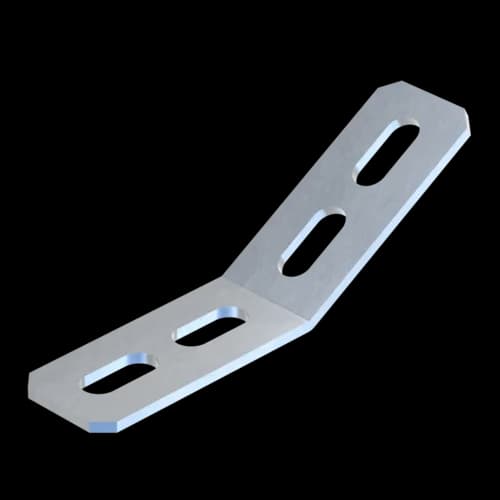

Fixing Bracket MW 90/90/30° HCP
Group: 1826
Part number 194041
Suitable for Sikla Channels MS 41
Useful addition to support brackets for integration in crossbars and other structures made of hot-dipped galvanised channels
Technical Data
B | 40 mm |
H | 90 mm |
H1 | 25,75 mm |
H2 | 40 mm |
L | 90 mm |
L1 | 25,75 mm |
L2 | 40 mm |
W | 30 ° |
t | 4 mm |
Technical specifications
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
