Fixed Point Set XS 280/300 HCP
Group: A705
Part number 110361

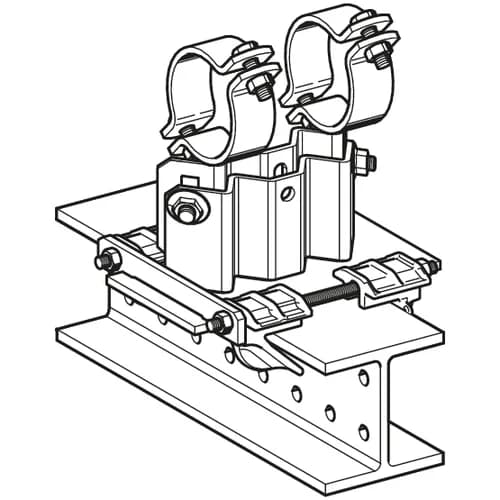

Modification of siMotec Sliding Pipe Shoes to Fixed Point Pipe Shoes on steel beams with flange widths from 80 to 300 mm
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
From XS 280/300
Group: A705
Part number 110361
Modification of siMotec Sliding Pipe Shoes to Fixed Point Pipe Shoes on steel beams with flange widths from 80 to 300 mm

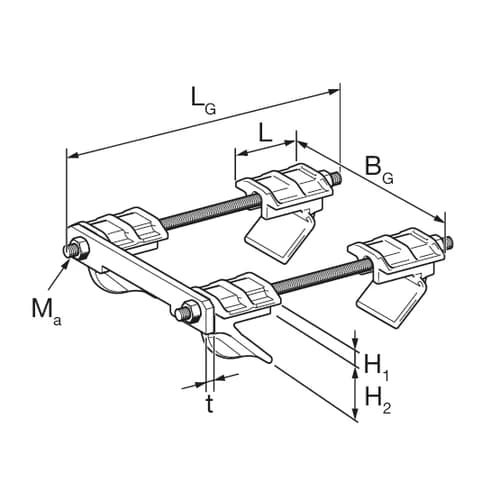

BG | 172,5 mm |
H1 | 9,5 mm |
H2 | 42 mm |
L | 60 mm |
LG | 410 mm |
Ma | M12 |

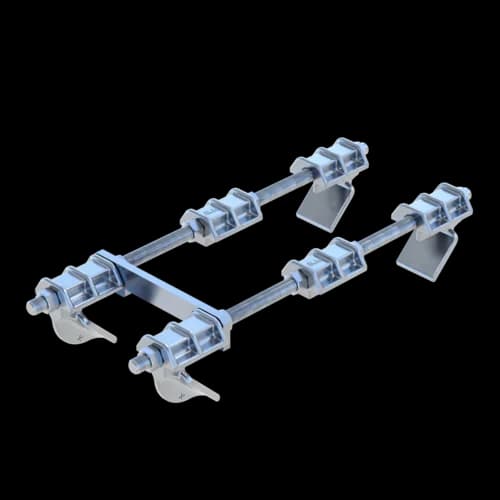

Pre-assembled Fixed Point Set consisting of:
4 clamping hooks
2 threaded rods
1 fixed point crossbar
2 Lift-off preventions
10 Hexagon nuts
Primary element material | cast steel |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
Axial fixed point forces can only be attained by the professional use of anti-slip protections (e.g. cleats, stoppers). Those have to be planned during the design of the piping and are on the responsibilty of the piping manufacturer.
The slide plate has to be removed.
Max. beam flange width t ≤ 30 mm
Tightening Torques:
| Flange Thickness [mm] | Beam Width 80 - 220 mm Tightening Torque [Nm] |
Beam Width 221 - 300 mm Tightening Torque [Nm] |
|---|---|---|
| 5 - 10 | 40 | 15 |
| 11 - 20 | 25 | 15 |
| 21 - 30 | 20 | 15 |
