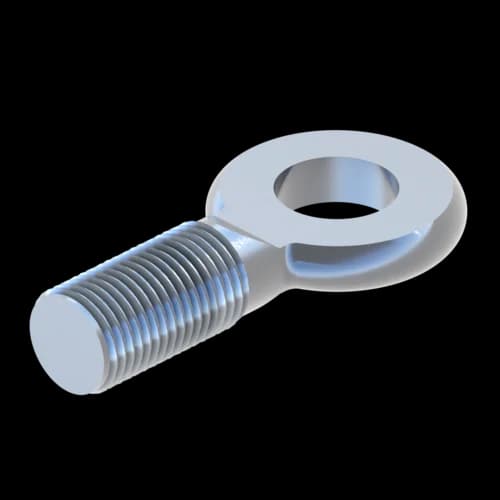

Eye Bolt SCR AS
Group: 1303
For attaching hooks, chains or perforated tape to existing perforated angle steel beams
Enables adaptation of threaded rods for flexible mounting options
Overview of Types
General Information
For attaching hooks, chains or perforated tape, as well as for adapting threaded rods to perforated angle steel beams available on site.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
SCR AS M 8x 20 | 4,00 kN |
SCR AS M10x 20 | 6,90 kN |
