WBD C 41/41-45 C0

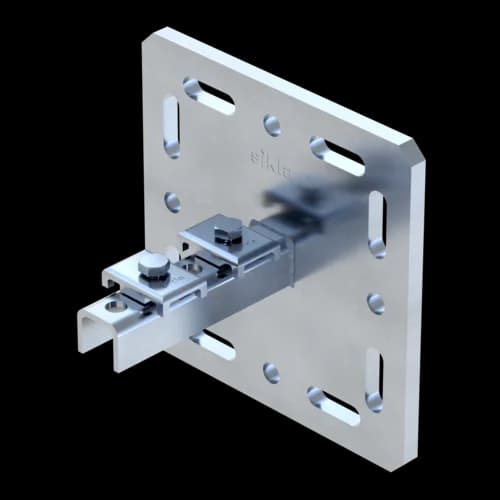

End Support WBD C 41/41-45 C0 HCP
Group: 1856
Part number 179498
End Support WBD combined with Sikla Channels MS 41/41 is ideal for setting up support structures on walls, floors and ceilings and for direct fixing to steel beams
In combination with Joining Plate AP, fixing to beams with flange width greater than 120 mm is possible
Technical Data

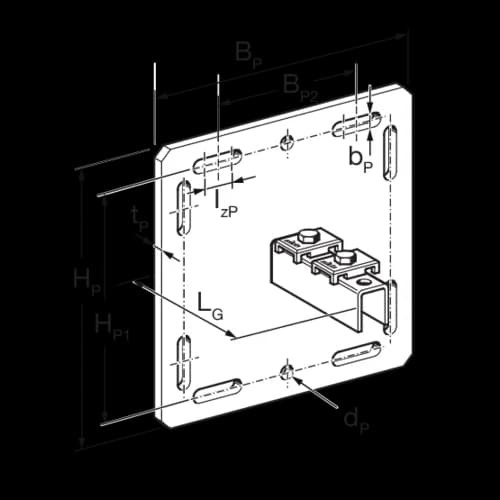

BP | 220 mm |
BP2 | 105 mm |
bP | 14 mm |
dP | 14 mm |
HP | 220 mm |
HP1 | 170 mm |
IZP | 30 mm |
LG | 153 mm |
tP | 12 mm |
Base plate with welded U-profile
Accessories (pre-assembled):
2 Holding Brackets
2 Hexagon Bolts
2 welded hexagon nuts
Technical specifications
Material base body | steel |
Material connecting element | cast steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
Depending on the situation, different options are recommended:
a) Frictional connection to steel beams using Assembly Set MS 5P M12 S.
b) Fixing to the building structure using at least 2 heavy-duty anchors M12. Please observe loads and approvals of anchors. For ceiling mounting, the bolt connecting channel and end support must pass through both parts.
Selection guide:
| Type | For Sikla Channels | For beam width [mm] | Holes for |
|---|---|---|---|
| 41/41-45 C0 | 41/41, 41/45 | 80 - 120 | M12 |
| 41-75/75 C0 | 41-75/75 | 80 - 120 | M12 |
| 41/41-45 D C0 | 41/41 D, 41/45 D | 80 - 120 | M12 |
