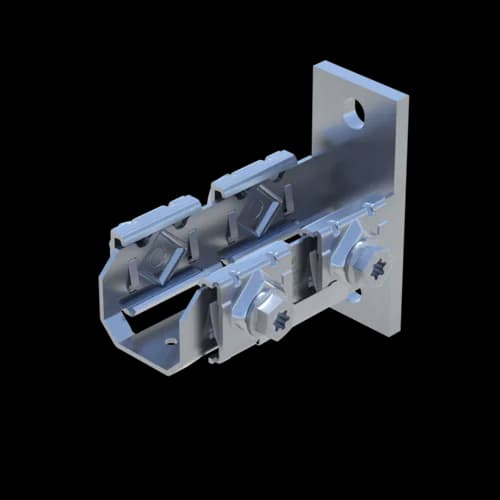

End Support WBD 46 HCP
Group: B102
Part number 803544

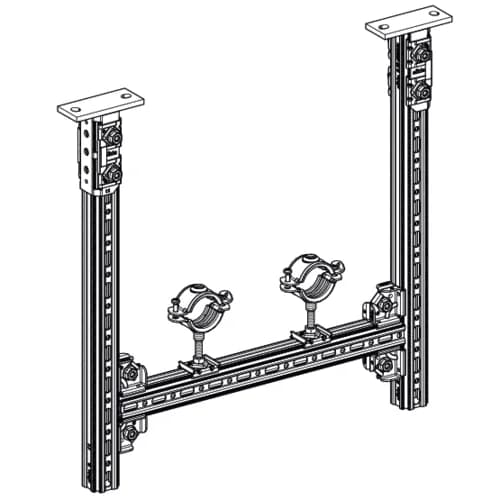

End Support WBD 46 combined with Profile PRO 46 is suitable for brackets for wall, floor and ceiling mounting and free-standing frame constructions
HCP design allows use in areas with higher corrosion protection requirements
Technical Data
BP | 50 mm |
bP | 13 mm |
HP | 120 mm |
HP1 | 90 mm |
IZP | 2 mm |
LG | 138 mm |
tP | 8 mm |
Load range
-VX,perm. | 1,61 kN |
VX,perm. | 1,61 kN |
-VY,perm. | 2,43 kN |
VY,perm. | 2,43 kN |
-VZ,perm. | 3,54 kN |
VZ,perm. | 2,64 kN |
-MY,perm. | 0,35 kNm |
MY,perm. | 0,40 kNm |
-MZ,perm. | 0,39 kNm |
MZ,perm. | 0,39 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
CAD
Installation
Connection to the building structure using Bolt Anchors AN BZ plus or heavy-duty anchors. Alternatively, fastening to steel beams using Joining Plate AP 46 80/120 (part no. 802158).
No. of Blocks with screws laterally: 4 x M10
Configuration: Base plate welded to profile intake
Required tool: T50 Bit or 17 mm (AF) Socket Bit
Tightening torque: 20 Nm
