STA F 100
End Support STA F100 HCP
Group: A822
Part number 113073
End Support enables flexible design options in combination with brackets or profiles
Compatible with F 100 and F 100/160 profiles for a wide range of applications
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
STA F 100
Group: A822
Part number 113073
End Support enables flexible design options in combination with brackets or profiles
Compatible with F 100 and F 100/160 profiles for a wide range of applications
siFramo - ETA-24/0471
PDF (2.15 MB)
BP | 100 mm |
dP | 14 mm |
HP | 210 mm |
HP2 | 170 mm |
LG | 188 mm |
tP | 8 mm |
-VX,Rd | 33,9 kN |
VX,Rd | 33,9 kN |
-VY,Rd | 27,2 kN |
VY,Rd | 27,2 kN |
-VZ,Rd | 23,6 kN |
VZ,Rd |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
Type STA F 100 and 100-80:
Depending on the situation, different options are recommended:

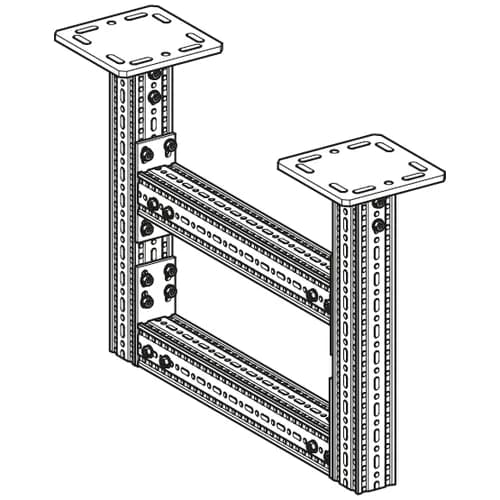

a) With 2x4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the octagonal insert and 2 suitable wall anchors/fixings when connected to the building structure.
The Beam Section TP F 100/100 connected to the End Support STA F 100 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary. Alternatively with two suitable wall anchors through holes “A” when fixed directly to building structure.

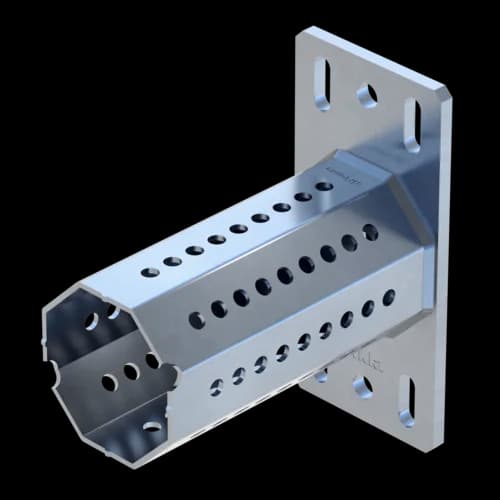

Configuration: Base plate welded to Octagon F 100 or F 80
Type STA F 100-100/160:
For the connection to Beam Section TP F 100 or TP F 100/160 (flange side 100) 4 Self Forming Screws FLS F are necessary.
The Beam Section TP F 100/160 connected to the End Support STA F 100 - 100/160 has to be screwed with 8 Self Forming Screws FLS F. On each of the broader sides 4 Self Forming Screws FLS F are necessary.
Configuration: Base plate welded to Octagon F 100/160
23,6 kN
-MX,Rd | 3,6 kNm |
MX,Rd | 3,6 kNm |
-MY,Rd | 2,6 kNm |
MY,Rd | 2,6 kNm |
-MZ,Rd | 1,5 kNm |
MZ,Rd | 1,5 kNm |
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
