End Support STA 100 HCP
Group: A630
Part number 183971

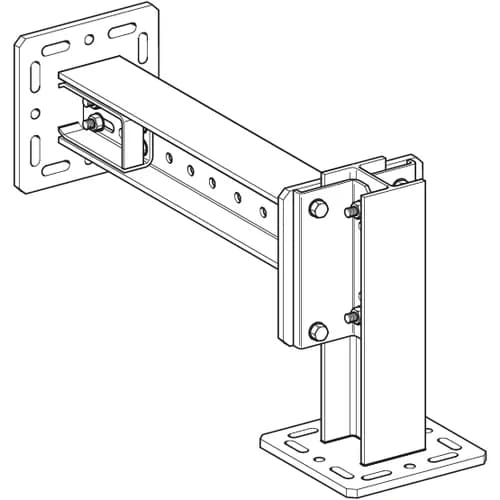

End Support STA 100, in connection with Beam Bracket TKO 100, enables construction of crossbars and further connections between building structure and steel construction
Slotted holes allow simple compensation of structural deviations up to 50 mm
Technical Data
BP | 220 mm |
dP | 14 mm |
HP | 220 mm |
HP1 | 170 mm |
LG | 184 mm |
tP | 12 mm |

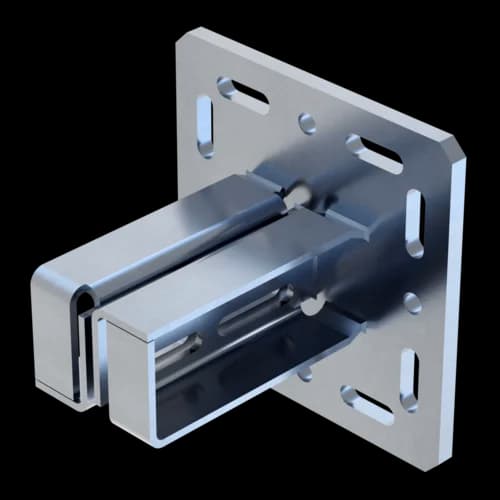

End Support STA 100
Accessories:
4 Hexagon bolts M12 x 40
4 Nuts M12
8 Washers
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Documents
Guidelines / Static
- Static Guideline - siMotec
PDF (8.58MB)
