ADK_T_10003_AW01.eps

ADK_T_10003_AW02.eps

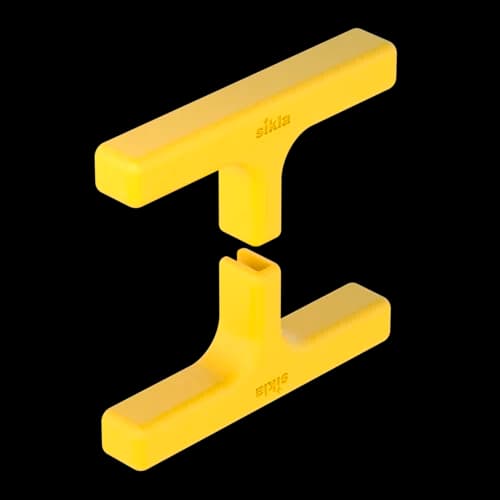

End Cap ADK 100

Group: A630

Part number 190433

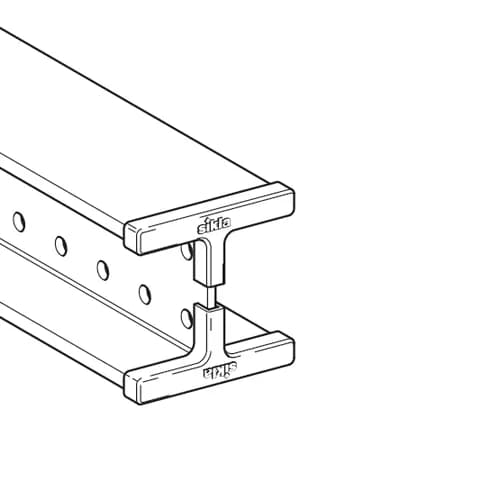

Clean finish at the ends of TKO 100, QKO 100 and similar components

Suitable for components based on an HEA 100 steel beam

Technical Data
Similar Products

Technical Data

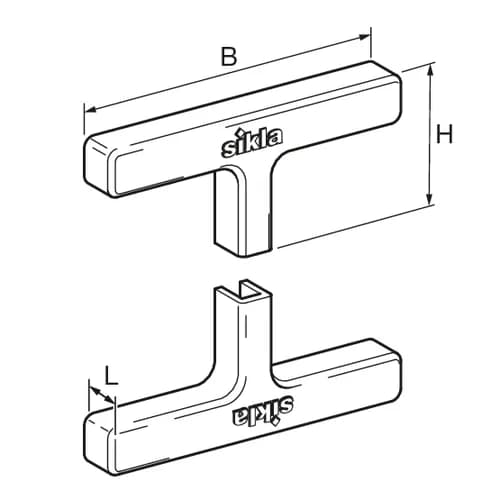

ADK_100_120_M.eps

B	110 mm
H	48 mm
L	18 mm

Loose, two End Caps are necessary for each beam end.

Technical specifications

Conditionally resistant to:

weather resistant

Material base body

PP
