Duo Clamp SRS ME 15- 19 A4
Group: 1722
Part number 170709

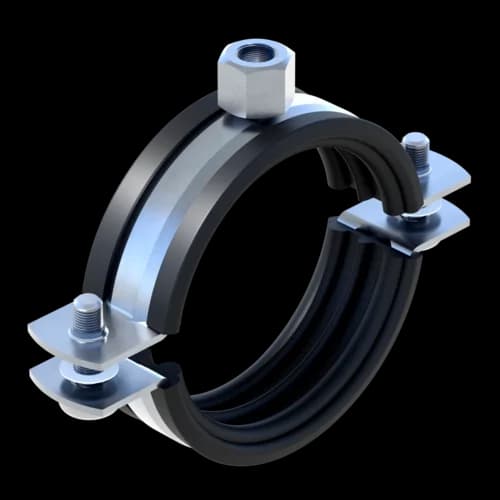

Two-piece pipe clamp with thread connection M8 or M10 for pipeline installation
Includes sound absorption lining for noise reduction
Technical Data
B1 | 58,5 mm |
b2 | 23,5 mm |
D | 18 mm |
D2 | 18 mm |
e | 43,5 mm |
H | 44 mm |
Mi1 | M8 |
t | 1,5 mm |
Supplied with two bolts partially mounted on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidental unscrewing.
Load range
-VZ,perm. | 0,60 kN |
Technical specifications
Primary element material | Stainless Steel A4 |
Isolating element material | SBR/EPDM |
Connecting element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Tightening torque: 2 Nm
