Duo Clamp SRS 75- 80 A4
Group: 1722
Part number 170666

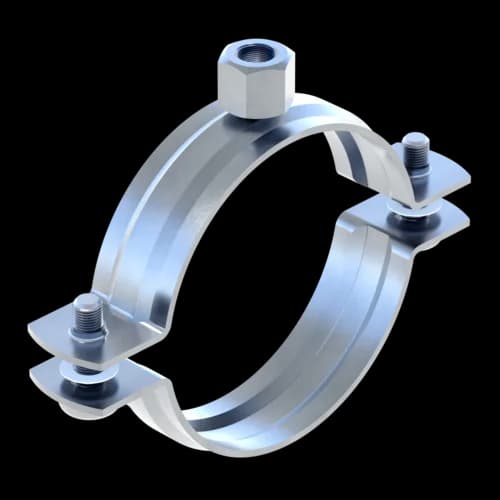

Two-piece clamp with thread connection M8 or M10 for pipeline installation
Technical Data
KI1 | 9,22 mm |
Supplied with two bolts partially mounted on one side and therefore ready for immediate installation. The clamping bolt on the open side is retained by a plastic washer, thus preventing any accidental unscrewing.
Load range
-VZ,perm. | 2,50 kN |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Technical specifications
Primary element material | Stainless Steel A4 |
Connecting element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Tightening torque: 2 Nm
