LUW F

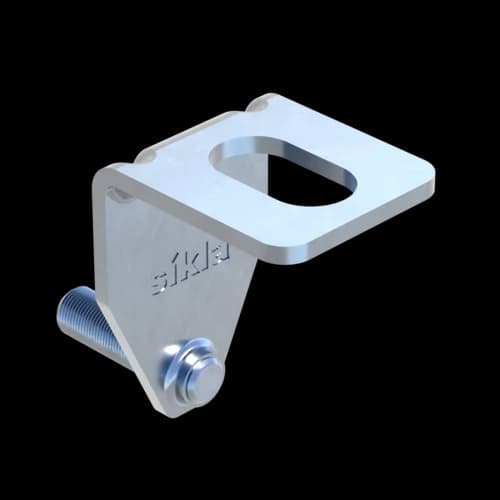

Ducting Angle LUW F
Group: 1605
Ducting Angle for a direct installation to the flange of rectangular ventilation ducts without duct penetration
Prevents flow losses, leaks and flow noise, meets hygiene requirements in accordance with VDI 6022
Overview of Types
General Information
Ducting Angle for a direct installation to the flange of rectangular ventilation ducts. Due to this external connection it's not necessary to penetrate the duct, therefore flow losses do not occur. In addition there are no leakages and flow noises. No disturbing screw tips interfere with cleaning operations. The Ductings Angles LUW F exceed the demands of VDI Standard 6022 (Hygiene requriements for ductings). Type LUW SF is suitable for soundproof duct installations according to DIN 4109. The slot allows adjustment facilities to compensate drill hole differences and construction tolerances.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
LUW F M 8 | 0,80 kN |
Software
This product is available in the following software.

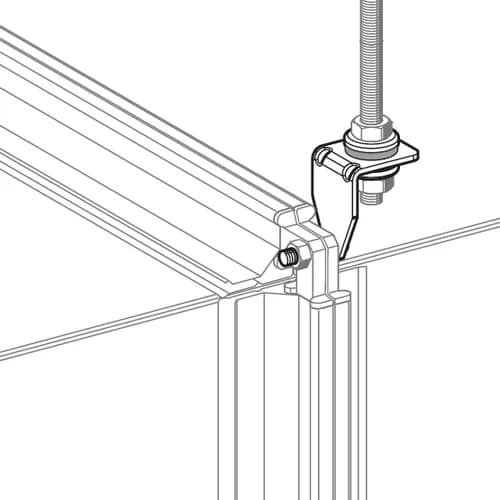

Installation
The ventilation duct could be connected directly to the pre-assembled grub screw.
