LUW A-Z

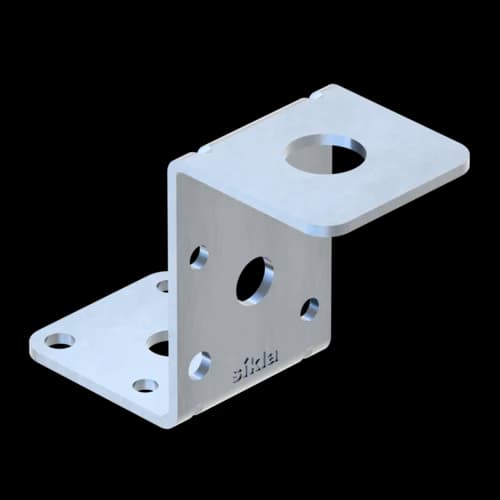

Ducting Angle LUW A-Z
Group: 1621
For mounting rectangular ventilation ducts directly below the ceiling

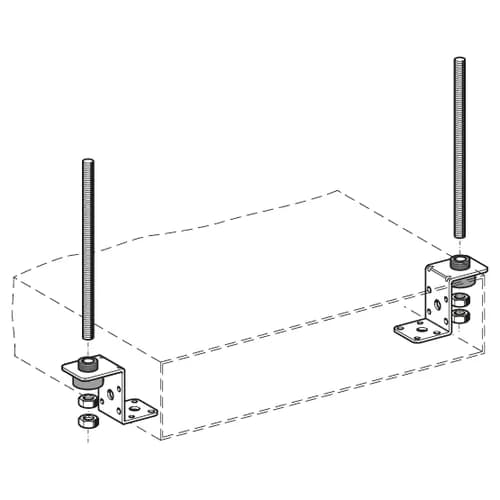

Also suitable for suspended installation with threaded rods
Overview of Types
General Information
Mounting Angle for rectangular ducts installed directly under the ceiling, or for suspended installation when using a threaded rod.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
LUW A-Z | 0,50 kN |
Software
This product is available in the following software.
Installation
Fixing to the duct with rivets (4 - 5 mm), sheet metal screws (4 - 5 mm) or M8 bolts.
Connection to building structure: M8/M10
