Group: A430
Part number 113095
90° connection of TP F100 beam sections with form-fit connection using Self Forming Screw FLS F
Flexible structures with high load-bearing capacity through the use of the Corner Bracket WD F100
siFramo - ETA-24/0471
PDF (2.15 MB)
Static Guideline - siFramo & siMotec
PDF (13.1 MB)

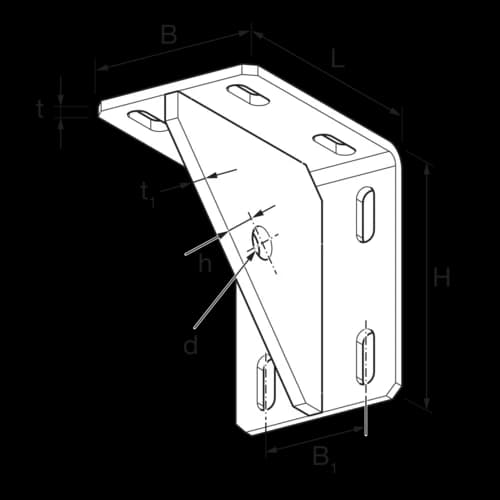

B | 100 mm |
B1 | 62 mm |
d | 18 mm |
H | 140 mm |
h | 25 mm |
L | 140 mm |
t | 6 mm |
t1 | 8 mm |
-VX,Rd | 44,2 kN |
VX,Rd | 44,2 kN |
-VY,Rd | 27 kN |
VY,Rd | 27 kN |
-VZ,Rd | 60,3 kN |
VZ,Rd |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
To be used in pairs only. 8 pieces of Self Forming Screw FLS are necessary for one Corner Bracket.
60,3 kN
-MX,Rd | 6,6 kNm |
MX,Rd | 6,6 kNm |
-MY,Rd | 8,1 kNm |
MY,Rd | 8,1 kNm |
-MZ,Rd | 3,9 kNm |
MZ,Rd | 3,9 kNm |
