Connector CN 46 HCP
Group: B103
Part number 803545
For creating crossbars or cantilevers on the Profile PRO 46.
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: B103
Part number 803545
For creating crossbars or cantilevers on the Profile PRO 46.
DoP (EN) - CN 46
PDF (610 KB)

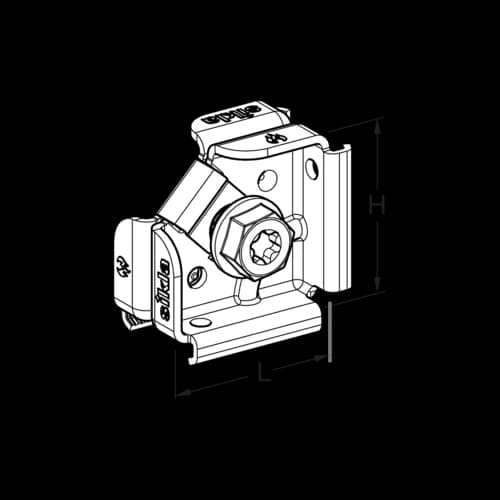

H | 50 mm |
L | 50 mm |
-VX,perm. | 0,72 kN |
VX,perm. | 0,72 kN |
-VY,perm. | 0,83 kN |
VY,perm. | 0,83 kN |
-VZ,perm. | 0,72 kN |
VZ,perm. | 0,72 kN |
-MY,perm. | 0,09 kNm |
MY,perm. | 0,12 kNm |
-MZ,perm. | 0,02 kNm |
MZ,perm. | 0,02 kNm |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Press the connector onto both adjoining profiles and secure by tightening the screw.
Depending on the load, one or two brackets can be used per connection. For cantilevers, connectors must always be used in pairs.
Required tool: T50 Bit or 17 mm (AF) Socket Bit
Tightening torque: 30 Nm
