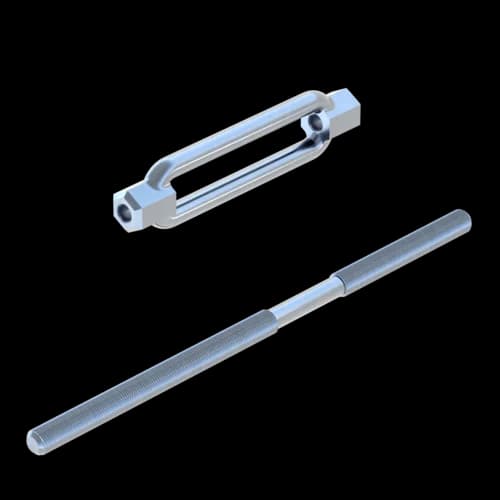

Clamping Set SPZ HCP
Group: 1878
Clamping set for constructing bracings and wind bracings, e.g., in the siFramo system as a tie rod to transfer loads and forces
Overview of Types
General Information
Clamping Set for construction of bracings and wind bracings e.g. in the system siFramo as tie rod to transfer loads/influences.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
SPZ M10 HCP | 11,50 kN |
SPZ M12 HCP | 15,00 kN |
SPZ M16 HCP | 23,50 kN |
Software
This product is available in the following software.
Installation

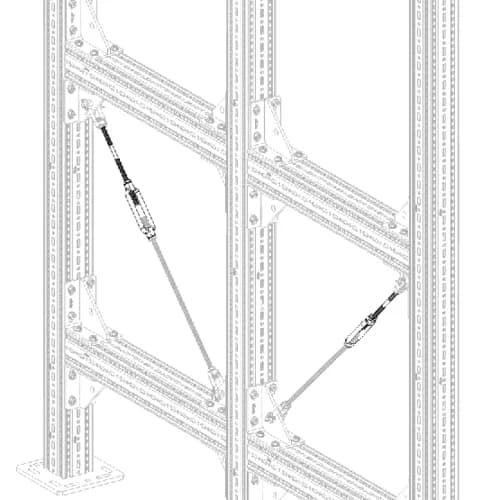

The connection to the reinforcing component is made on one side of the turnbuckle with the threaded rod and on the other side with the tie rod. Connection to the structure is done by the Threaded Clevis GWB.
