Group: 1255

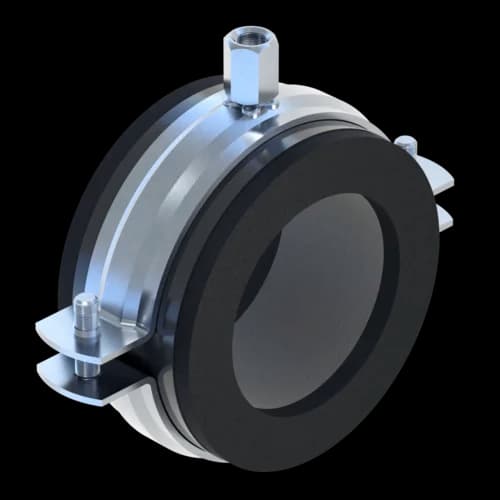

Secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines
Diffusion-tight connection through secure end-face sealing with commercially available insulation materials.
Recommended up to -0°C at normal ambient condition.
The tightening torque is 2 Nm for all sizes.
For types up to 168, the maximum support spans specified in DIN 1988 may be used.
The installation instructions in DIN 4140 must be observed (any gaps must be sealed).
| Type | Nominal thickness [mm] | Size | Length PUR element [mm] |
|---|---|---|---|
| LKS 13 | 13 | 10 - 89 | 50 |
| LKS 13 | 13 | 102 - 168 | 100 |
Suitable for secure prevention of condensation water at the pipe support location of refrigeration and cold-water pipelines. An optimal diffusion-tight connection with the pipe insulation is easily and safely achieved by fixing usual insulation materials to the clamp faces using adhesive. Recommended up to -0°C at normal ambient condition.
Certification
Max. temperature | 105 °C |
Min. temperature | -40 °C |
Thermal conductivity λ {0°C} | λ = 0,024 - 0,026 W/mK |
Thermal conductivity λ {10°C} | λ = 0,038 W/mK |
Thermal conductivity λ {40°C} | λ = 0,040 W/mK |
Fire Performance | Class EL according to DIN EN 13501-1 |
Insertion isolation | 18 dB(A) |
Bulk density | 80,00 kg/m³ |
Halogen-free | Yes |
Water vapour diffusion resistance factor | µ 7000 |
Storage shelf life | 1 year |
Primary element material | steel |
Isolating element material | PUR, ALU, EPDM |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | -VZ,perm. |
LKS 13- 10 | 0,25 kN |
LKS 13- 12 | 0,30 kN |
LKS 13- 15 | 0,35 kN |
LKS 13- 16 |
Software
This product is available in the following software.
0,40 kN
LKS 13- 18 | 0,45 kN |
LKS 13- 20 | 0,45 kN |
LKS 13- 22 | 0,45 kN |
LKS 13- 25 | 0,50 kN |
LKS 13- 26 | 0,50 kN |
LKS 13- 28 | 0,55 kN |
LKS 13- 30 | 0,55 kN |
LKS 13- 32 | 0,55 kN |
LKS 13- 35 | 0,60 kN |
LKS 13- 38 | 0,60 kN |
LKS 13- 40 | 0,60 kN |
LKS 13- 42 | 0,60 kN |
LKS 13- 44 | 0,60 kN |
LKS 13- 48 | 0,60 kN |
LKS 13- 50 | 0,95 kN |
LKS 13- 54 | 1,00 kN |
LKS 13- 57 | 1,00 kN |
LKS 13- 60 | 1,05 kN |
LKS 13- 64 | 1,10 kN |
LKS 13- 70 | 1,20 kN |
LKS 13- 76 | 1,25 kN |
LKS 13- 80 | 1,30 kN |
LKS 13- 89 | 1,40 kN |
LKS 13-102 | 1,55 kN |
LKS 13-108 | 1,65 kN |
LKS 13-110 | 1,65 kN |
LKS 13-114 | 1,70 kN |
LKS 13-125 | 1,85 kN |
LKS 13-133 | 1,95 kN |
LKS 13-139 | 3,25 kN |
LKS 13-160 | 3,65 kN |
LKS 13-168 | 3,80 kN |
