Chilled Water Clamp KS RB
Group: 1253

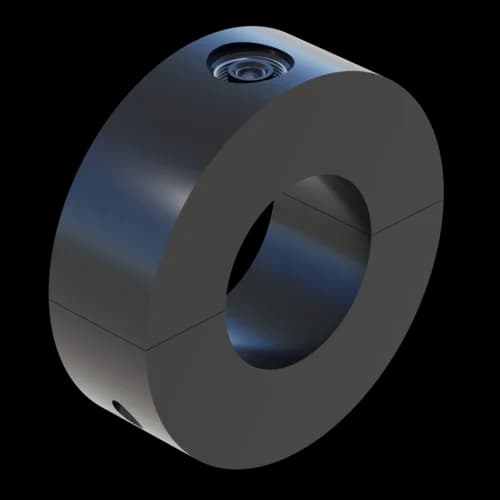

Insulated pipe clamp made of PUR foam for chiller plants and cool water systems
Overview of Types
General Information
Insulated pipe clamp made of PUR-foam for chiller plants and cool water systems.
Technical specifications
Max. temperature | 105 °C |
Min. temperature | -50 °C |
Thermal Conductivity λ {0°C} | λ 0,045 W/Mk |
Fire Performance | EL according to DIN EN 13501-1 |
Compressive strength | 4,30 N/mm² |
Insertion Isolation | 16 dB(A) |
Bulk Density | 250,00 kg/m³ |
Water vapour diffusion resistance factor | µ 1200 |
Material base body | PUR |
Material insulation body | PE |
Material connecting element | steel |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
KS RB 175 EX 15/30 | 0,27 kN |
KS RB 175 EX 17/30 | 0,27 kN |
KS RB 175 EX 18/30 | 0,28 kN |
KS RB 175 EX 21/30 | 0,33 kN |
KS RB 175 EX 22/30 | 0,34 kN |
KS RB 175 EX 27/30 | 0,42 kN |
KS RB 175 EX 28/30 | 0,44 kN |
KS RB 175 EX 33/30 | 0,53 kN |
KS RB 175 EX 35/30 | 0,55 kN |
KS RB 175 EX 42/30 | 0,66 kN |
KS RB 175 EX 48/30 | 0,75 kN |
KS RB 175 EX 54/30 | 0,87 kN |
KS RB 175 EX 57/30 | 0,89 kN |
KS RB 175 EX 60/30 | 1,17 kN |
KS RB 175 EX 76/30 | 1,48 kN |
KS RB 175 EX 89/30 | 1,73 kN |
KS RB 175 EX 114/40 | 2,67 kN |
KS RB 175 EX 133/40 | 3,11 kN |
KS RB 175 EX 139/40 | 3,27 kN |
KS RB 175 EX 159/40 | 3,72 kN |
KS RB 175 EX 168/40 | 3,94 kN |
KS RB 175 EX 204/60 | 7,95 kN |
KS RB 175 EX 219/60 | 8,54 kN |
Types with delivery time on request: 15/30, 17/30, 18/30, and 57/30
Software
This product is available in the following software.
Installation

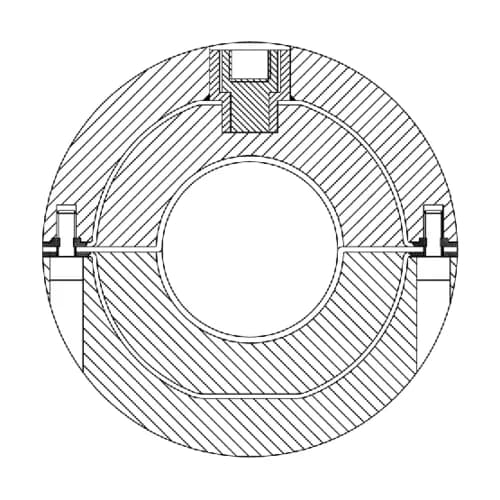

Screw in upper part and position the pipe. Tighten closely lower part with displaced caoutchouc part to upper part (PUR part to caoutchouc, caoutchouc part to PUR).
Advantage: Sealant is not longer required!
