41/21
Channel MS 41/21/2,0 6M A4
Group: 1711
Part number 110595
For the simple and professional manufacturing of crossbars, wall brackets and support frames
Stainless steel Channel 41 rails are suitable as guide and support rails for the 41 VA sliding piece.
Technical Data

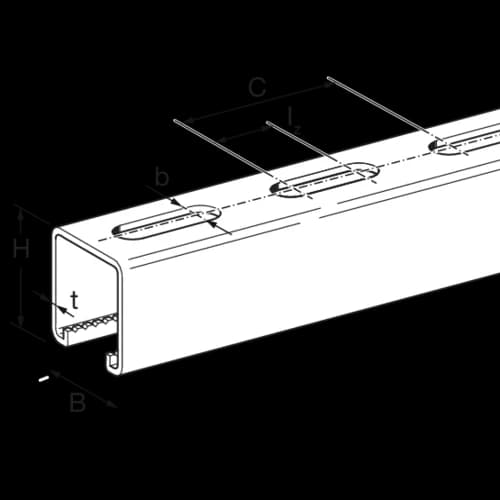

B | 41 mm |
b | 13 mm |
C | 62,5 mm |
H | 21 mm |
lz | 27 mm |
t | 2 mm |
Load range
VZ,perm. | 4,00 kN |
MX,perm. | 0,04 kNm |
Elastic modulus Wy | 0,82 cm³ |
Elastic modulus Wz | 2,11 cm³ |
Second moment of area Iy | 0,92 cm^4 |
Second Moment of Area Iz | 4,32 cm^4 |
Radius of gyration iy | 0,75 cm |
Radius of gyration iz | 1,64 cm |
Torsional constant It | 0,01 cm^4 |
Cross-sectional Area A | 1,60 cm² |
Note: All values refer to slotted channels.
Technical specifications
Permissible stress σ{perm.} | 185,00 N/mm² |
Permissible yield strength fy,perm. | 285,00 N/mm² |
Primary element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
All channels of the 41 series are serrated inside and provide numerous combination options with other stainless steel system components.
