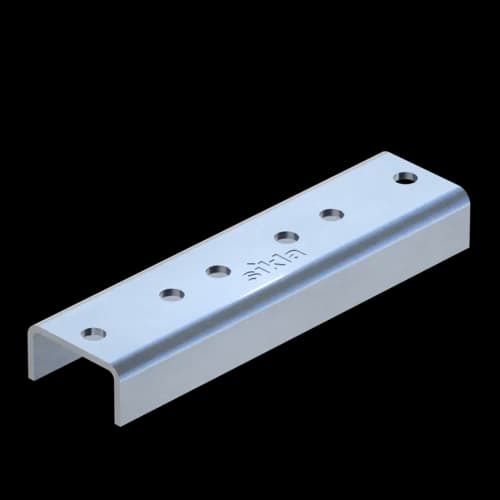

Channel Connector SK L HCP
Group: 1853
Part number 198971
Element for connecting channel
The multiple bearing of the Channel is to be secured

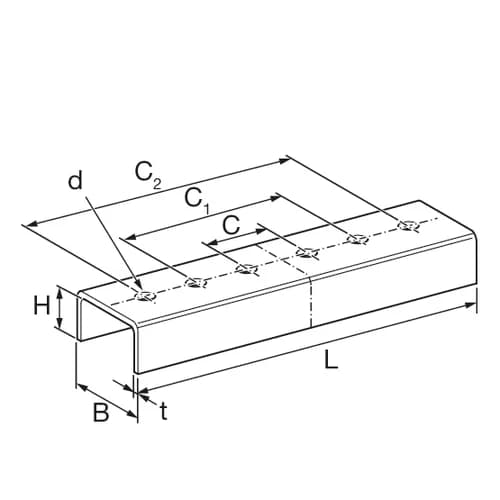

Technical Data
B | 41,5 mm |
C | 35 mm |
C1 | 82 mm |
C2 | 160 mm |
H | 21 mm |
L | 180 mm |
t | 3 mm |
Load range
MY,perm. | 0,30 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation

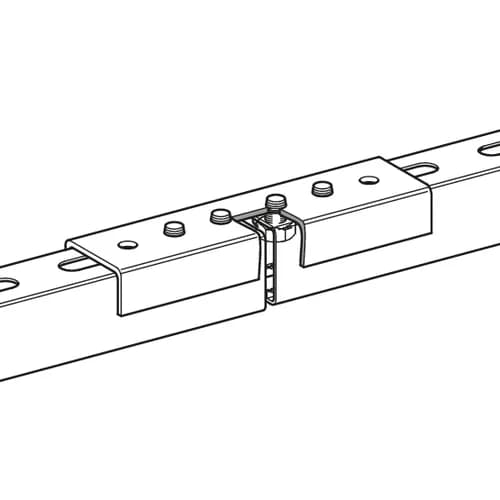

Position the Channel Connector on the back of the channel and bolt together the channel ends (through the channel slots) by means of each two Self Forming Screws FLS F.
Suitable for Sikla Channel MS 41.
