SK 41/62
Channel Connector SK 41/52 HCP
Group: 1853
Part number 195659
Used for easy and safe extension or joining of Sikla Channels
Suitable for use on the construction site or during prefabrication in the workshop

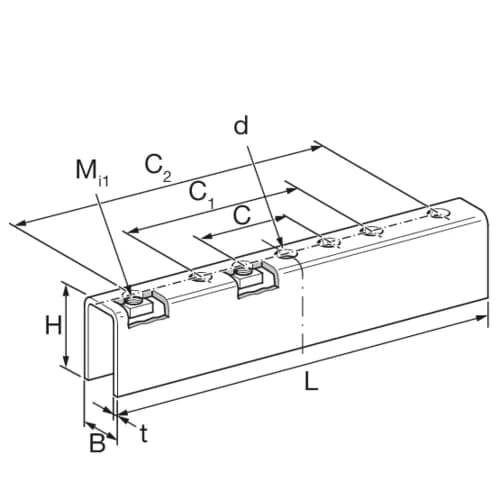

Technical Data
B | 34 mm |
C | 60 mm |
C1 | 120 mm |
C2 | 214 mm |
H | 41 mm |
L | 260 mm |
Mi1 | M10 |
t | 4 mm |
With Holding Brackets HK 41 and hexagon nuts (supplied loose).
Load range
MY,perm. | 1,30 kNm |
Technical specifications
Material base body | steel |
Material connecting element | steel, cast steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
All enclosed elements must be installed in order to ensure the static values.
For extending double rails, please refer to the information in Chapter 2 of our brochure “Installation Guideline.”
Selecting the right channel:
| Type | For channel |
|---|---|
| SK 41/21-31 | 41/21/1,5 - 41/31/2,0 |
| SK 41/41-45 | 41/41/2,0 - 41/45/2,5 |
| SK 41/52 | 41/52/2,5 |
| SK 41/62 | 41/62/2,5 |
| SK 41-75/65 | 41-75/65/3,0 |
| SK 41-75/75 | 41-75/75/3,0 |
