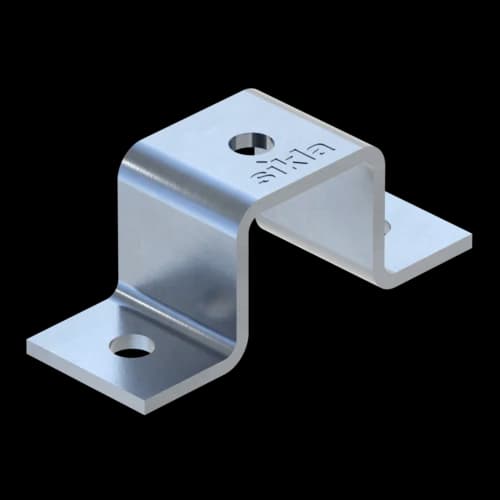

SH 41/41, 41/21 D
Channel Bracket SH 41/41,41/21 D HCP
Group: 1812
Part number 183116
Comprehensive bracing construction of Sikla Channels for frame construction
Can be mounted directly on the building structure or onto other channels
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
SH 41/41, 41/21 D
Group: 1812
Part number 183116
Comprehensive bracing construction of Sikla Channels for frame construction
Can be mounted directly on the building structure or onto other channels

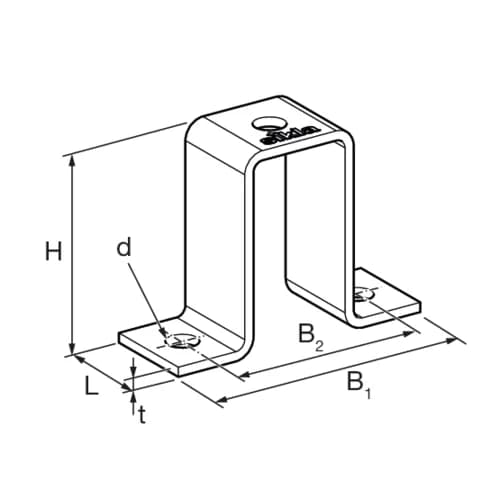

B | 42 mm |
B1 | 111 mm |
B2 | 80 mm |
d | 11 mm |
L | 40 mm |
H | 39 mm |
t | 4 mm |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
