Channel Adapter SA F100-41 HCP
Group: A827
Part number 113081
Enables compatibility of Channel 41/41 and 41/41 D with the F 100 beam sections
Easy creation of routes or structures, optionally with siConnect system components
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: A827
Part number 113081
Enables compatibility of Channel 41/41 and 41/41 D with the F 100 beam sections
Easy creation of routes or structures, optionally with siConnect system components

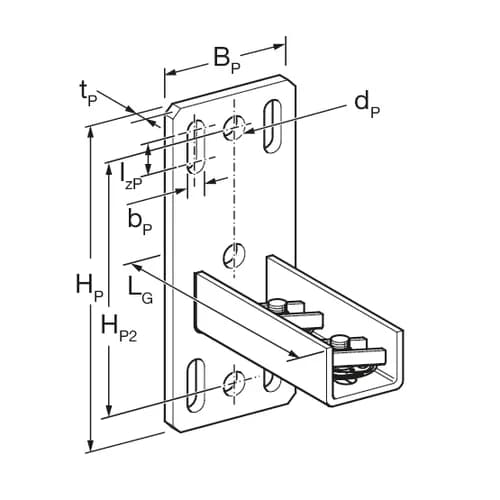

BP | 100 mm |
bP | 11 mm |
dP | 14 mm |
HP | 210 mm |
HP2 | 170 mm |
IZP | 20 mm |
LG | 134 mm |
tP | 8 mm |
-VX,Rd | 3,3 kN |
VX,Rd | 3,3 kN |
-VY,Rd | 26,6 kN |
VY,Rd | 26,6 kN |
-VZ,Rd | 24,1 kN |
VZ,Rd |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
The Channel Adapter SA F100-41 requires 4 x Self Forming Screw FLS in order to be connected to the siFramo profile. The strut channel must be inserted with the slot first whilst pressing the two bolt’s heads triggering an automatic 90°-locking operation of the two channel spring nuts. The strut channel is now securely held and can be adjusted. Finally the two screws must be tightened with the appropriate torque for the strut channel used.
24,1 kN
-MY,Rd | 0,7 kNm |
MY,Rd | 0,7 kNm |
-MZ,Rd | 0,9 kNm |
MZ,Rd | 0,9 kNm |
Certification
