Cantilever Bracket AK 46-P - 200 HCP
Group: B101
Part number 802209
Prefabricated single-arm cantilever installations for walls or other on-site structures
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: B101
Part number 802209
Prefabricated single-arm cantilever installations for walls or other on-site structures
DoP (EN) - AK 46-P
PDF (505 KB)

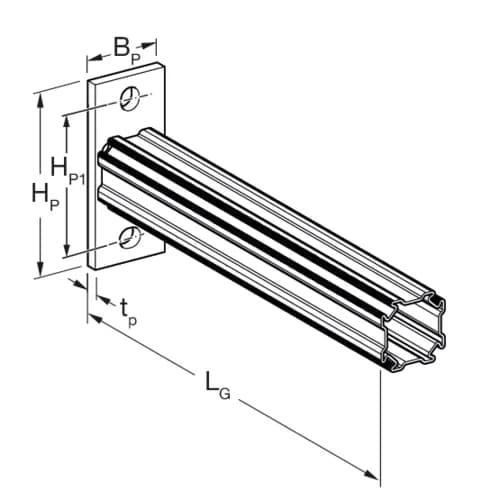

BP | 50 mm |
HP | 120 mm |
HP1 | 90 mm |
LG | 210 mm |
tP | 8 mm |
-VX,perm. | 25,41 kN |
VX,perm. | 25,41 kN |
-VY,perm. | 12,41 kN |
VY,perm. | 12,41 kN |
-VZ,perm. | 11,36 kN |
VZ,perm. | 11,36 kN |
-MY,perm. | 0,66 kNm |
MY,perm. | 0,66 kNm |
-MZ,perm. | 0,65 kNm |
MZ,perm. | 0,65 kNm |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |

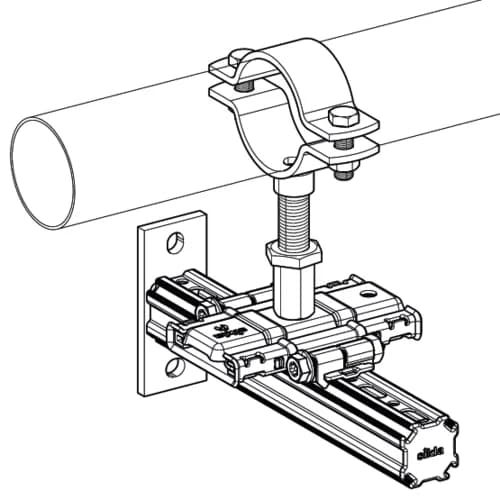

Connection to the structure using Bolt Anchor AN BZ plus or heavy-duty anchors. Alternatively, fastening to steel beams using Joining Plate AP 46 80/120 (part no. 802158). When used in conjunction with sliding elements, a cross brace (in combination with Tie Rod STR and Blockset PBS 46 M10 x 50) is recommended to resist forces in the axial direction of the pipe. For cantilever lengths >= 500 mm, a vertical brace or support is recommended.
Configuration: Base plate welded to Profile PRO 46-P
