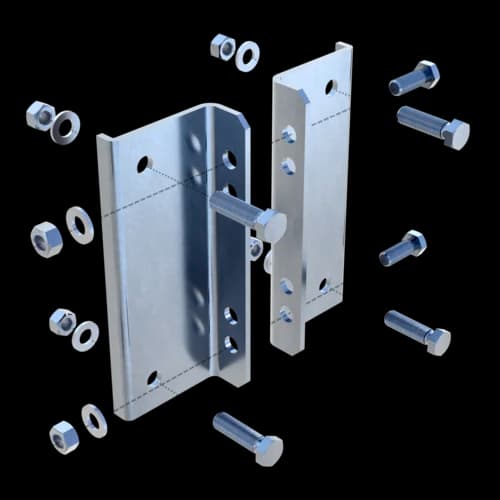

Bracket Plates FV-SET 100/120 HCP
Group: A630
Part number 187616
For safe interlocking connection of a beam bracket or an end support STA to other beam brackets TKO with grid adjustment of 25 or 50 mm
Technical Data
Two identical plates.
Accessories:
2 Hexagon Bolts M12 x 35
4 Hexagon Bolts M12 x 45
6 Hexagon Nuts M12
6 Washers
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation

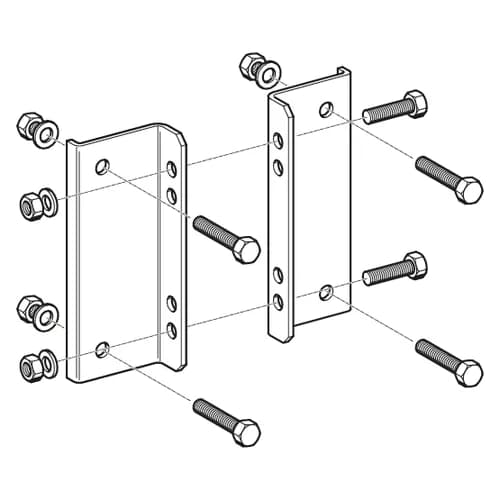

Mount Bracket Plates to Beam Bracket TKO by using 2 Hexagon Bolts M12 x 35. Then attach requested Beam Bracket TKO or End Support STA by using 4 Hexagon Bolts M12 x 45.
Documents
Guidelines / Static
- Static Guideline - siMotec
PDF (8.58MB)
