Bracket for vertical pipes SFK
Group: 1341
Flange Clamp Fit SFK for downpipes DN 100 to DN 150 with flexible adjustment options

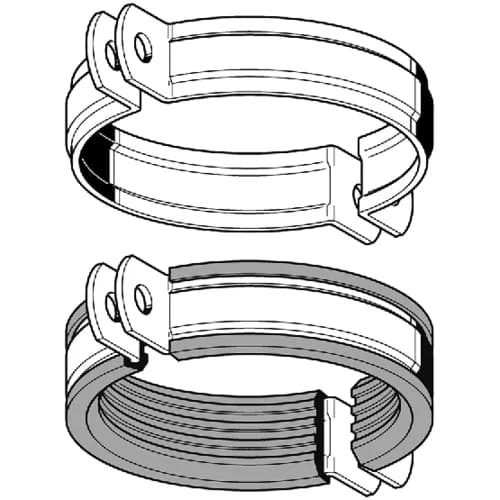

Preferably used with Pipe Clamp Stabil D-A or Stabil D-A with lining for sound absorption
Adjustable in two horizontal directions for exact and tension-free pipe alignment
Overview of Types
General Information
The Flange Clamp Fit SFK can be used for downpipes ranging from DN 100 to DN 150 thanks to its flexible adjustment options – one bracket for three sizes! Preferably used in combination with Pipe Clamp Stabil D-A or, if sound absorption is required, with Stabil D-A with Lining (see below). Adjustable in two horizontal directions, thus ensuring an exact and tension-free run of vertical pipes. In case SFK Brackets from pipe manufactures are used, rubber rings are added as insulation.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | VX,perm. |
SFK 100-150 | 2,00 kN |
Software
This product is available in the following software.

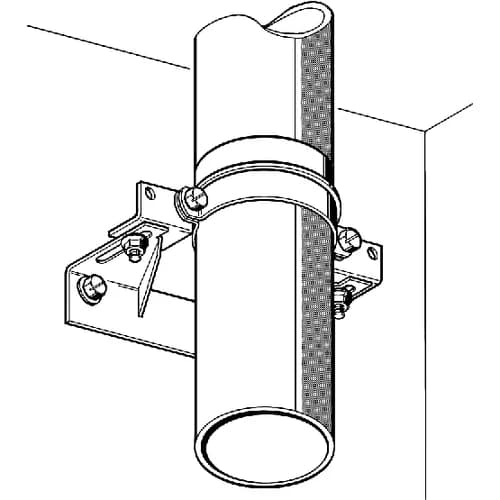

Installation
Distance between wall and pipe:
NB 100 (SML 110): min. 5 mm - max. 72 mm
NB 125 (SML 135): min. 5 mm - max. 53 mm
NB 150 (SML 160): min. 5 mm - max. 40 mm
The Stabil D-A pipe clamp is suitable for the bracket SFK.
