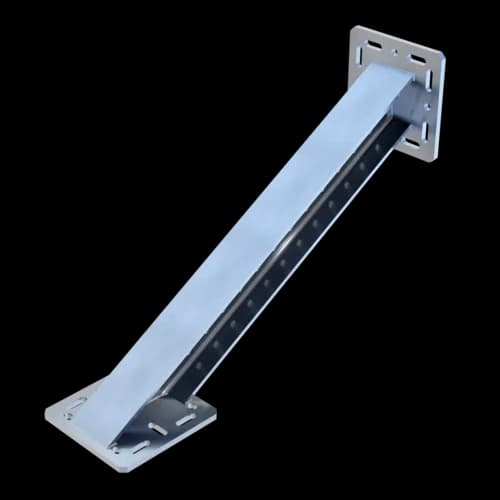

Bracing Arm SKO 100/120 HCP
Group: A622
Part number 191531
Beam bracket suitable as support for horizontal structures or as reinforcement of bearing constructions on site
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: A622
Part number 191531
Beam bracket suitable as support for horizontal structures or as reinforcement of bearing constructions on site
Static Guideline - siFramo & siMotec
PDF (13.1 MB)

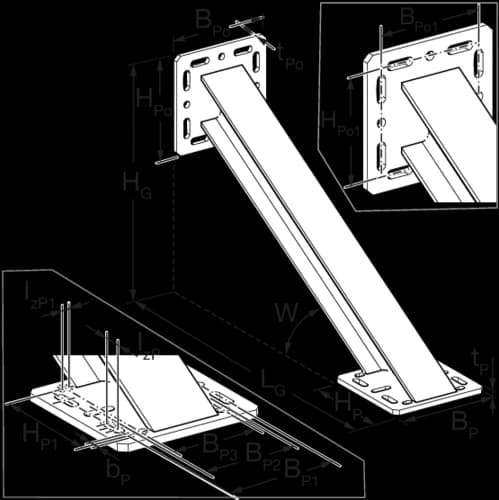

BP | 220 mm |
BP1 | 170 mm |
BP2 | 140 mm |
BP3 | 129 mm |
bP | 14 mm |
BPo | 220 mm |
BPo1 | 170 mm |
HG | 512 mm |
HP | 220 mm |
HP1 | 170 mm |
HPo | 220 mm |
HPo1 | 170 mm |
IZP | 30 mm |
IZP1 | 6 mm |
LG | 797 mm |
tP | 12 mm |
tPo | 12 mm |
W | 30° |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.

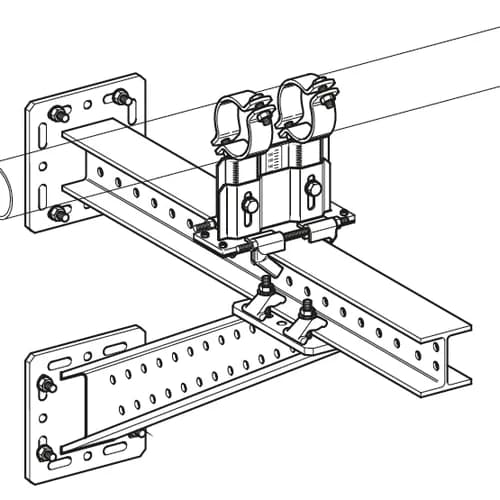

Depending on the situation, different options are recommended:
a) Fixing to the building structure using 4 heavy-duty anchors M12.
b) Frictional construction to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S.
c) Interlocking connection to Beam Bracket TKO 100 or 120 by means of Bracket Plates FV 100/120.
Certification
CE mark (Declaration of performance see downloads)
