Brace Joint SG
Group: 1342

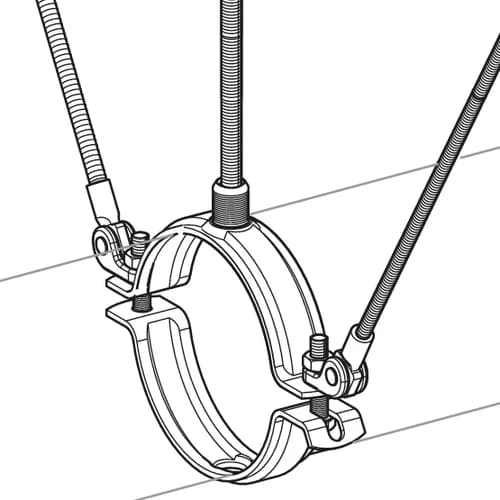

Support Joint attached directly to the pipe clamps for additional, secure bracing

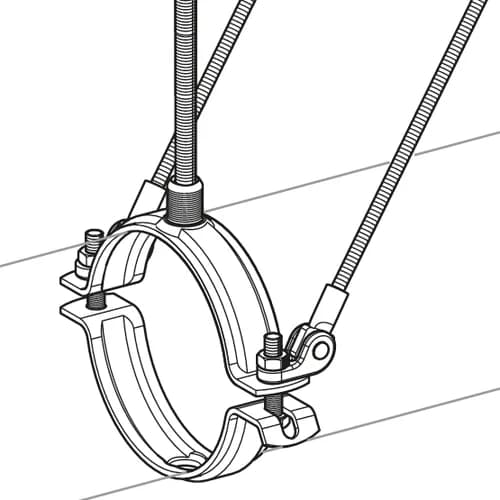

Adjustable Support Joint via pipe hangers
Overview of Types
General Information

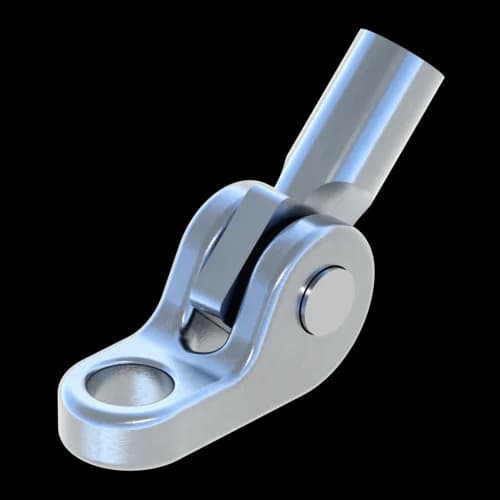

The Support Joint is fixed directly to the flanges of the pipe clamp to provide additional bracing to the overall pipe support. Adjustable brace angle. The Support Joint can be rotated 180° radially about the clamping bolt connections either side of the pipe clamp. Captive pivoting link eye.
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | Vmax α = 0° - 45° | Vmax α = 90° |
SG M10 -11 | 15,00 kN | 5,00 kN |
SG M10 -13 | 16,00 kN | 6,00 kN |
SG M10 -17 | 15,00 kN | 7,00 kN |
Software
This product is available in the following software.
Installation
Adjustment of Support Joint by means of the pipe clamp's clamping bolts. Subsequently the threaded rod is screwed in the Link Eye.
Suitable support joint/clamp combinations:
| Type | Clamps |
|---|---|
| SG M10-11 |
Stabil D-3G (133-140 to 167-173) Stabil D-A (76-81 to 124-129) Stabil RB-A (13-18 to 45-49) |
| SG M10-13 |
Stabil D-3G (176-184 to 310-316) Stabil D-A (133-140 to 297-303) Stabil RB-A (57-61 to 214-220) Stabil D-M16 (218-227 to 271-277) |
| SG M10-17 |
Stabil D-A (316-324 to 513-521) Stabil RB-A (248-254 to 603-610) |
