PBH 46 M16
Block PBH 46 M16 HCP
Group: B114
Part number 803550
Quick assembly system for attaching pipe clamps and components to the siMetrix Profile PRO 46
Self-retaining thanks to the shape, yet easily movable by hand
Compatible with Pressix Rods PNS, threaded rods and other connecting elements

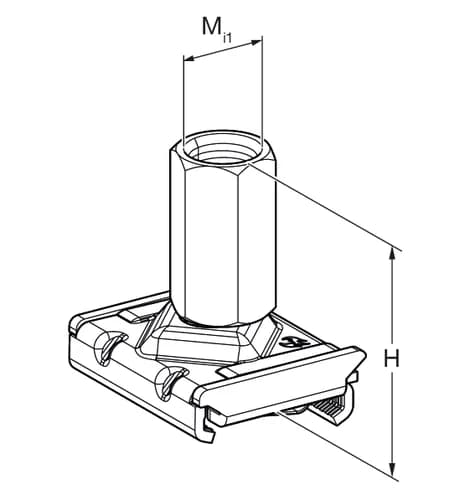

Technical Data
H | 45 mm |
Mi1 | M16 |
Block completely pre-assembled.
Adapter also pre-assaembled.
Load range
-VX,perm. | 0,54 kN |
VX,perm. | 0,54 kN |
-VY,perm. | 2,54 kN |
VY,perm. | 2,54 kN |
-VZ,perm. | 4,52 kN |
VZ,perm. | 4,52 kN |
-MX,perm. | 0,04 kNm |
MX,perm. | 0,04 kNm |
-MY,perm. | 0,05 kNm |
MY,perm. | 0,05 kNm |
Following loads direction not RAL-tested: V(X), V(y), M(x) und M(y)
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.
CAD
Installation
Snap the block onto the profile, then tighten the connecting element with a lock nut. To disassemble, loosen the lock nut and press on the shoulder (highest point) of the block upper part and pull it off the profile.
Tightening torque: 15 Nm
