TP 120

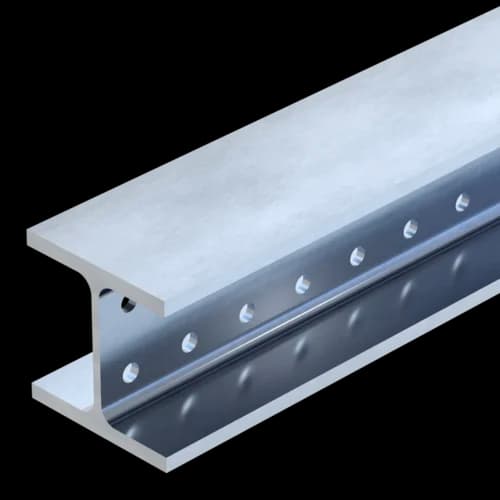

Beam Section TP 120 HCP
Group: A600
Multifunctional support profile for tracks, complex substructures and 3D units
Suitable for demanding load situations such as large spans
Overview of Types
General Information
Multifunctional beam section to create complex substructures and 3D units for a wide range of applications. The beam section is suitable for a wide variety of applications with demanding load situations, e.g. with large spans or heavily loaded frame constructions.
Certification
Technical specifications
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Load range
Type | Elastic modulus Wy | Elastic modulus Wz | Second moment of area Iy | Second Moment of Area Iz | Radius of gyration iy | Radius of gyration iz |
TP 120 6M HCP | 142,00 cm³ | 52,80 cm³ | 853,00 cm^4 | 317,00 cm^4 | 5,13 cm | 3,13 cm |
Type | Torsional constant It | Cross-sectional Area A |
TP 120 6M HCP | 13,66 cm^4 | 32,30 cm² |
Note: All values refer to slotted channels.
Also available with DualShield for high corrosion protection within C5H environments.
