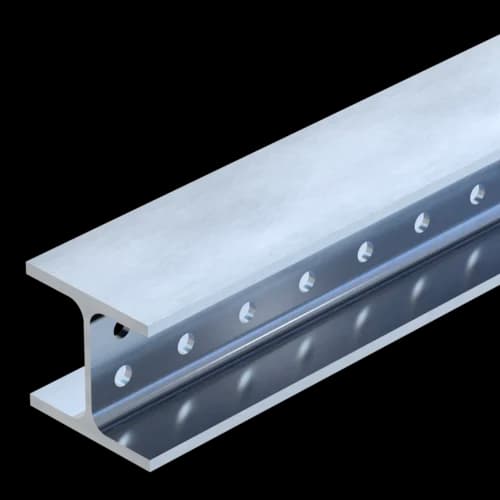

TP 100
Beam Section TP 100 6m HCP
Group: A601
Part number 117354
Multifunctional support profile for tracks, complex substructures and 3D units
Suitable for demanding load situations such as large spans
Technical Data

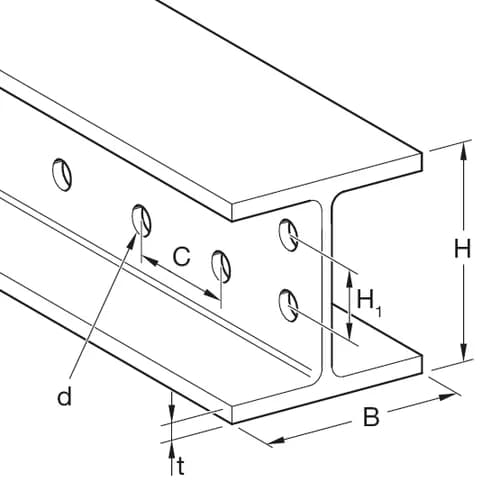

B | 100 mm |
C | 50 mm |
d | 13,5 mm |
H | 96 mm |
H1 | 32 mm |
t | 8 mm |
Resistance torque Wy | 26,70 cm³ |
Resistance torque Wz | 71,00 cm³ |
Moment of inertia Iy | 341,00 cm^4 |
Moment of inertia Iz | 133,00 cm^4 |
Radius of inertia iy | 4,14 cm |
Radius of inertia iz | 2,59 cm |
Moment of inertia It | 5,15 cm^4 |
Cross-section A | 19,00 cm² |
Note: All values refer to slotted channels.
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
