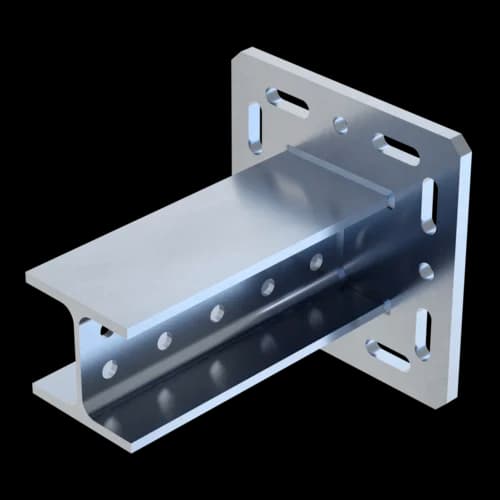

TKO 100 X 250
Beam Bracket TKO 120- 350 HCP
Group: A620
Part number 193150
Element for mounting to floors, ceilings or walls, or for assembling crossbars
Types TKO 120 x 1500, 2000 and 3000 are not suitable for cantilever arrangements
Technical Data
B | 120 mm |
C | 50 mm |
d | 13,5 mm |
H | 120 mm |
H1 | 50 mm |
LG | 362 mm |
tP | 12 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Depending on the situation, different options are recommended:
a) Fixing to building structure using 4 heavy-duty anchors M12.
b) Frictional connection to steel beams (flange width 80 - 120 mm) with Assembly Set 5P M12 S.
c) Interlocking connection to other beam brackets TKO 100 or 120 by means of Bracket Plates FV 100/120.
The ø 13 mm holes following a 50 mm grid allow the combination with other products using M12 bolts.
Configuration: Base plate welded to IPB120 beam
Documents
- Static Guideline - siMotec
PDF (8.58MB)
