TKZ 80/120

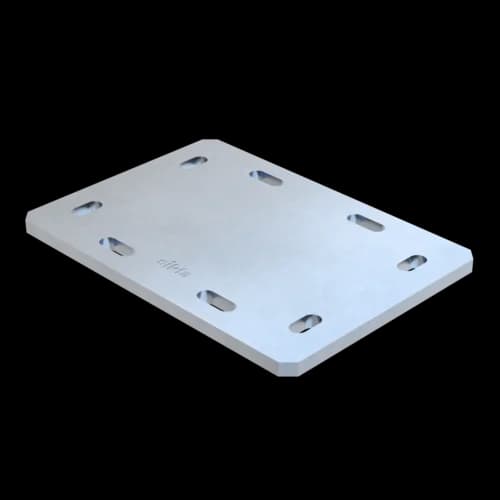

Beam Adapter Plate TKZ 80/120 HCP
Group: A627
Part number 803575
Production of a cross-bracing within the siMotec 100 and 120 support systems
Connection to primary steel structures with flange widths up to 310 mm possible
Technical Data
BP | 220 mm |
BP1 | 170 mm |
bP1 | 14 mm |
bP2 | 14 mm |
HP | 310 mm |
HP1 | 250 mm |
IZP1 | 17 mm |
IZP2 | 22,5 mm |
tP | 12 mm |
Load range
-VX,perm. | 12,00 kN |
VX,perm. | 12,00 kN |
-VY,perm. | 12,00 kN |
VY,perm. | 12,00 kN |
VZ,perm. | 52,60 kN |
Shear force load capacities are calculated for the worst event of flange thickness 30 mm (M12) or 40 mm (M16) and include a friction coefficient µ(adhesion) = 0.20.
A possibly operating tensile force F(z) isn't included.
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Beam flange width 80 - 120:
Connect Beam Adapter Plate 80/120 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.
Beam flange width 121 - 160:
Connect Beam Adapter Plate 121/310 with the help of 2 x Assembly Set MS 5P M12 (Part number 115843) onto the crossing steel beam. Assembly Sets must be ordered separately.
Beam flange width 161 - 310:
Connect Beam Adapter Plate 121/310 with the help of 1 x Assembly Set MS 5P M12 (Part number 115843) and 1 x Assembly Set MS 5P M16 (Part number 115844) onto the crossing steel beam. Assembly Sets must be ordered separately.
| Type | Connection to flange width [mm] | Tightening torque MA [Nm] / plus revolution |
|---|---|---|
| 80/120 | 80 - 120 | 60 / 90° |
| 121/310 | 121 - 160 | 60 / 90° |
| 121/310 | 161 - 310 | 140 / 90° |
