Group: 1102
Part number 113913
An Assembly Group for the supporting of pipes without complex requirements and without heat insulation on siFramo beam sections. This allows free sliding of the pipe in all directions on the Beam Section TP F 100.
Allows free sliding of the pipe in all directions on Beam Section TP F 100

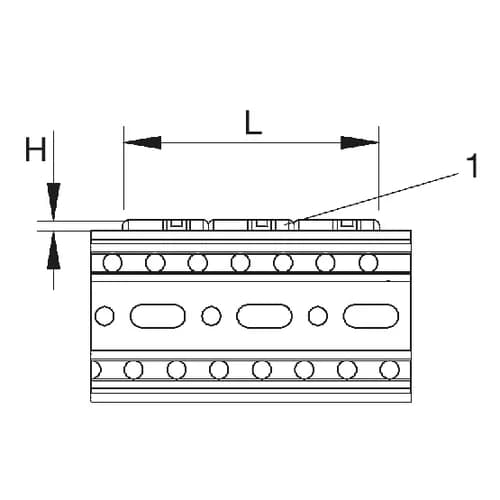

H | 5 mm |
L | 40 mm |
Each Assembly Group is pre-assembled, packed and labeled. An Assembly Group comprises 3 U-UB pads.
Parts list:
Item 1 Pad U-UB F 100
Max. temperature | 130 °C |
Min. temperature | -20 °C |
Primary element material | steel |
Sliding element material | PA 6.0 |
Surface finish | HCP |
Corrosion protection class | C4 |
According to the anticipated sideways movement of the supported pipes, 1 to 3 U-UB pads should be clicked into the beam section.
|
Number U-UB pad |
Lenght L [mm] |
Height H [mm] |
|---|---|---|
| 1 | 40 | 5 |
| 2 | 80 | 5 |
| 3 | 120 | 5 |
Certification
