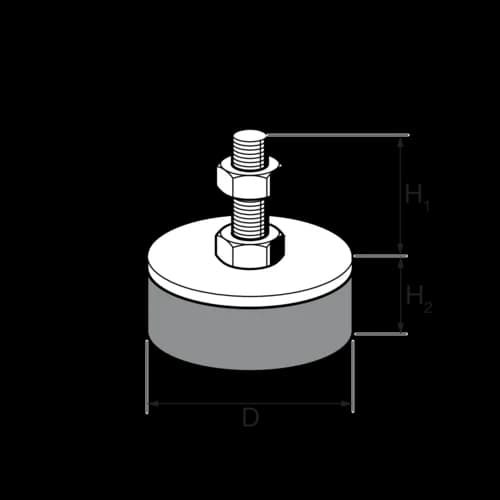

Anti-Vibration Element GMT M12
Group: 1399
Part number 117090
Rubber-metal combination element GMT suppresses vibrations from systems such as motors and boilers
Prevents transmission of vibrations as sound through rigid building structures
Mounting situation does not affect efficiency; can also be used as a horizontal stop buffer
Technical Data
1 Set = 4 elements
Each element is accompanied by two hexagon nuts.
Load range
-VZ,perm. | 5,00 kN |
Technical specifications
Max. temperature | 70 °C |
Min. temperature | -30 °C |
Hardness | 57+/-5° Shore |
Primary element material | steel |
Isolating element material | caoutchouc |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
