Type W
Group: 1326
Complete connecting element for frame constructions made from Channel, type W for connection to wall, floor or ceiling.
Quick connection technology for 90° joints, locks automatically when pressure is applied to the screw head
Tightening torque: 40 Nm
Info | Type | Weight | Quantity | Part number | |

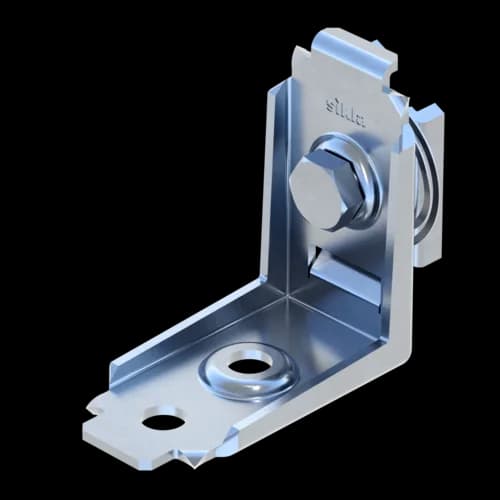

| CN CC41 - 90° W STABIL | 0,174 kg/pcs. | 25 pcs. | 191684 | ||
Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling. High-speed assembly system for 90°- and 45°-structures of Channels MS 41. Locks automatically by pushing down the bolt head and at the same time supports its own weight. Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type |
VX,perm. |
VZ,perm. |
CN CC41 - 90° W STABIL | 2,30 kN | 3,50 kN |
Software
This product is available in the following software.
Certification
This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.
