Type W

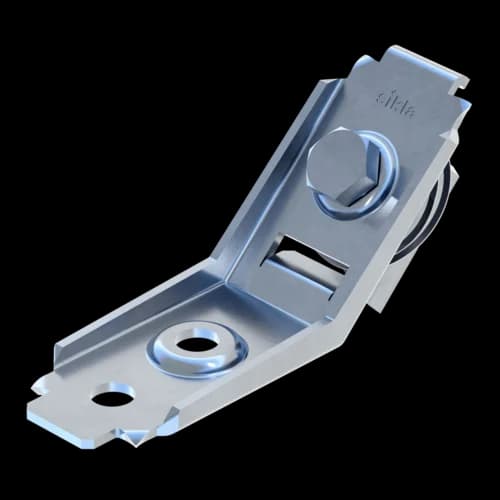

Angle Connector CN CC41-45° W
Group: 1326
Complete connecting element for frame constructions made from Channel, type W for connection to wall, floor or ceiling.
Quick connection technology for 45° joints in Channel MS 41, locks automatically when pressure is applied to the screw head
Overview of Types
General Information
Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling. High-speed assembly system for 90°- and 45°-structures of Channels MS 41. Locks automatically by pushing down the bolt head and at the same time supports its own weight. Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.
Certification
This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | VX,perm. | VZ,perm. |
CN CC41 - 45° W STABIL | 2,30 kN | 3,50 kN |
Software
This product is available in the following software.
Installation
Tightening torque: 40 Nm
