Type W
Angle Connector CN CC27 - 90°W
Group: 2726
Part number 195789
Complete connecting element for frame constructions made from Channel MS 27, type W for connection to wall, floor or ceiling.
Quick-locking mechanism for 90° junction of CC-27 system, locks automatically by pressing on the screw head

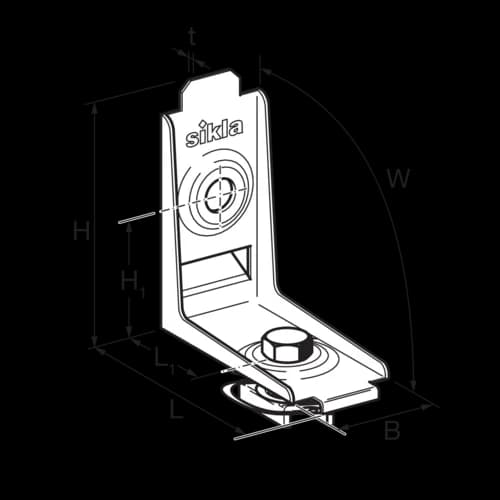

Technical Data
B | 27 mm |
H | 59 mm |
H1 | 32 mm |
L | 56 mm |
L1 | 32 mm |
t | 2 mm |
W | 90 ° |
Load range
-VX,perm. | 0,80 kN |
VX,perm. | 0,80 kN |
-VZ,perm. | 0,80 kN |
VZ,perm. | 0,80 kN |
Specification per connector.
Technical specifications
Primary element material | steel |
Connecting element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
Installation
Tightening torque: 10 Nm
