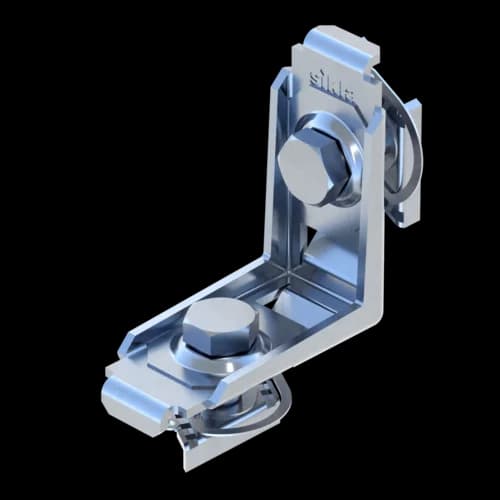

Angle Connector CN CC27
Group: 2726
Complete connecting element for frame constructions made from Channel MS 27
Quick-locking mechanism for 90° junction of CC-27 system, locks automatically by pressing on the screw head
Overview of Types
General Information
Pre-assembled connecting angle especially for frames made of Channels MS 27. Type W for connection to wall, floor or ceiling. Quick-locking mechanism for 90° junction of CC-27 system. By pressing on the bolt head the connector automatically locks into the channel, supporting its own weight and retaining its position, enabling easy adjustment. Secure form-locked connection. Serrated channel nut with M8 clamping bolt. Stiff and strong due to high-performance steel and geometric design.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
CN CC27 - 90° | 0,80 kN | 0,80 kN | 0,80 kN | 0,80 kN |
Specification per connector.
Software
This product is available in the following software.
Installation
Tightening torque: 10 Nm
