Adapter Plate AP 46 HCP
Group: B109
Enables the connection of a Cantilever Bracket AK 46 or WBD 46 to steel beams
Suitable for beam flange widths of 80 to 120 mm
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: B109
Enables the connection of a Cantilever Bracket AK 46 or WBD 46 to steel beams
Suitable for beam flange widths of 80 to 120 mm

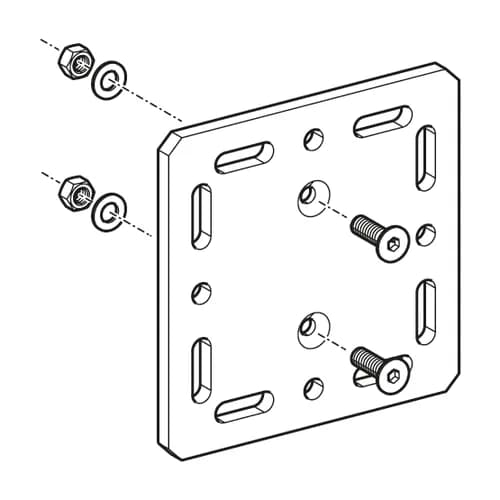

Form locking connection of joining plate with Cantilever Bracket AK 46 or WBD 46 using countersunk Screws and nuts. Force-locking fastening to steel beams using Assembly Set MS 5P M12 S.
| Round holes for | Connection to flange width [mm] | Tightening torque Mounting Set [Nm] |
|---|---|---|
| M12 | 80 - 120 | 81 |

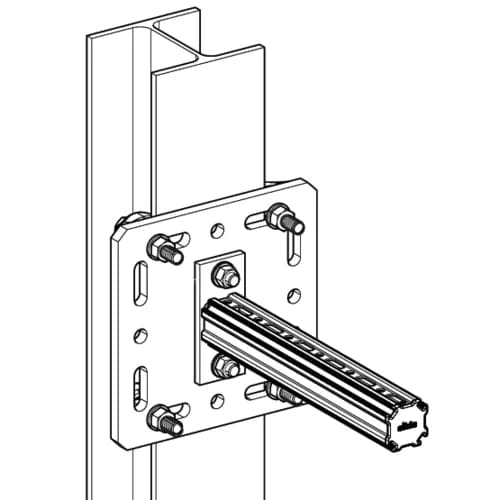

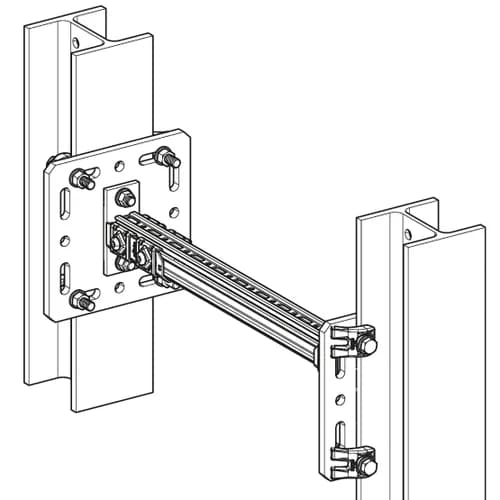

Interface element to enable the connection of a Cantilever Bracket AK 46 or a WBD 46 to steel beams with beam flange widths of 80 to 120 mm.
Certification
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Software
This product is available in the following software.
Info | Type | Min. flange width | Weight | Quantity | Part number | |
| AP 46 80/120 HCP | 80,00 mm | 3,99 kg/pcs. | 1 pcs. | 802158 | ||
