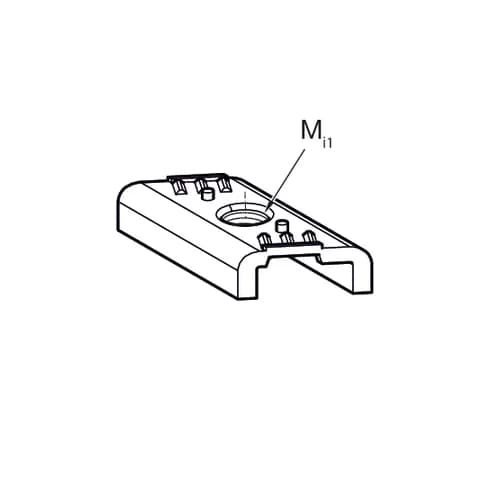

Adapter NT CC41 DIN 3015 M 6
Group: 1314
Part number 110005
Enables efficient assembly of fastening clamps DIN 3015 (light and heavy series) to Channels MS 41
Ideal for vertical channels or hard-to-access positions, replacing the “third hand”
Compatible with all Sikla Channels MS 41; prevents screw heads from sticking and ensures flush fixation after tightening
Technical Data
Channel nut, spring and thread connection pre-assembled.
Technical specifications
Material base body | steel |
Material connecting element | Spring steel, stainless |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
After inserting the Adapter CC 41 into the channel opening, slightly press on the thread connection. The piece automatically turns into position. Postion the fastening clamp and tighten the screws.
Neither assembly nor removal require a tool and are repeatable as much as is necessary.
