End Support STA F100 HCP
3 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
End Support STA-E F 80 45° HCP
1 Variant
The End Support STA F80-E 45° is designed to generate a 45° bracing element in combination with F80 beam sections or F80 Cantilever Brackets.
End Support STA-E F 80-E HCP
2 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F80 or a Cantilever bracket AK F80. By means of the round holes in the base plate a direct connection to excisting cast-in channels is possible.
End Support STA-E F100 -F 80 45° HCP
1 Variant
The End Support STA F 100-80-E 45° is designed to generate a 45° bracing element in combination with F100 Beam Sections or F100 Cantilever Brackets.
End Support STA-E F100 HCP
4 Variants
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100 or a Cantilever bracket AK F 100. Variation types F 100-80 (E) are designed to combine F 100 with F 80 beam sections. Octagonal insert allows full utilisation of beam section within the space required by the End Support STA itself.
End Support STA-Q F 80 HCP
1 Variant
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 80 or TP F 80/30. A connection to Cantilever brackets AK F 80 or AK F 80/30 can also be realised e.g. for cable trays and downpipes.
End Support STA-Q F100 HCP
1 Variant
Plug-in component designed to create an endplate at the open end of a Beam Section TP F 100/160.
End Support WBD 41 HCP
4 Variants
In combination with a Sikla Channel MS 41, End Support WBD is particularly suitable for setting up structures attached to walls, floors and ceilings as a base for frame structures made of Sikla Channels. The generous dimensions and the diamond shape of the mounting plate provide for a high bending moment and safely stabilise lateral loads. The HCP design allows for use in areas with higher corrosion protection requirements.
End Support WBD 46 HCP
1 Variant
In combination with Profile PRO 46, End Support WBD 46 is particularly suitable for: brackets for wall, floor and ceiling mounting free standing frame constructions. The HCP design allows for use in areas with higher corrosion protection requirements.
End Support WBD C 41 HCP
3 Variants
In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.
End Support WBD F 80 HCP
5 Variants
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
End Support WBD F100 HCP
8 Variants
Plug-in component designed to create a square end plate at the open end of a Beam Section TP F 100 or a Beam Bracket/Cantilever bracket AK F 100. Variation 'T' with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Eye-Plate HP F 80 HCP
6 Variants
Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Eye-Plate HP F100 HCP
6 Variants
Connecting component for the direct attachment of rod hanger assemblies to the siFramo 100 system. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Eye-Plate HP HCP
6 Variants
Connecting component for the direct attachment of rod hanger assemblies to beam sections with a flange width 80-99mm. The pre-welded Eye-Plate serves as a basic element for the connection of the Rod Hanger Load Chain Assembly LKV in sizes M10 up to M16 rod and Pipe Clamps type Stabil Form C LK.
Fixed Point Bracket XW F 80 HCP
1 Variant
Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 80 beam sections.
Fixed Point Bracket XW F100 HCP
1 Variant
Element for modification of Sliding Pipe Shoes to Fixed Point Pipe Shoes on siFramo TP F 100 beam sections.
Fixed Point Set XS HCP
5 Variants
Modification of siMotec Sliding Pipe Shoes to Fixed Point Pipe Shoes on steel beams with flange widths from 80 to 300 mm.
Fixed Point XR - H 20 HCP
80 Variants
Fixed Point for attachment of steel or stainless steel pipes of DN 15 up to DN 300 on steel beams with width of 80 up to 300 mm and max. flange thickness of 20 mm. From DN 65 onwards, the design of the assembly changes.
Fixing Bracket MW 30° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.
Fixing Bracket MW 45° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.
Fixing Bracket MW 90° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.

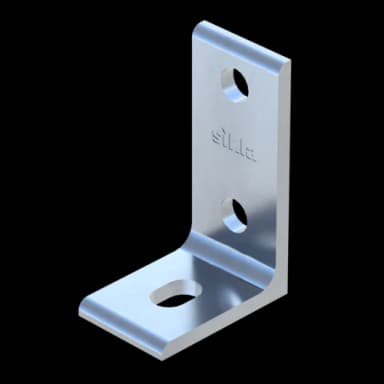

Fixing Bracket MW S HCP
2 Variants
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.
Flange Screw SCR FLA TT HCP
2 Variants
The Flange Screws are self-forming screws. Type TT M10 x 60 is only suitable for connecting mounting rails <= 41 mm high with siFramo profiles.
