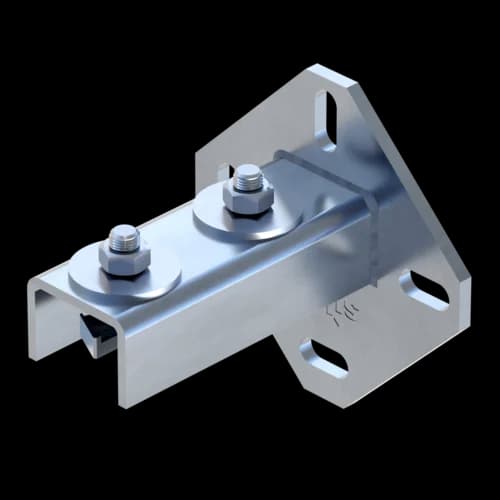

End Support WBD 41 A4
Group: 1730
Part number 193631
End Support WBD 41 ss combined with a channel is suitable for setting up support structures on walls, floors and ceilings as a base for frame structures

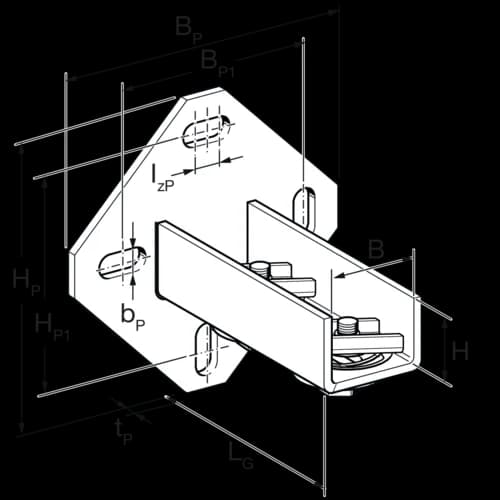

Technical Data
BP | 135 mm |
BP1 | 100 mm |
bP | 11 mm |
HP | 135 mm |
HP1 | 100 mm |
IZP | 14 mm |
LG | 131 mm |
tP | 6 mm |
Load range
VX,perm. | 7,00 kN |
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Normally, two anchors grouped opposite to each other and along the load axis are sufficient. Only in exceptional cases (e.g. high props in frameworks) four anchors are required.
Tightening torque 40 Nm.
Suitable for stainless steel channels with width 41 mm up to height <= 62 mm.
Documents
Datasheets / Loads
- Anchor Loads - End Support WBD ss
PDF (0.11MB)
